MPS20N0040D-D Air Pressure Sensor 0-40kPa DIP-6

85.00
You save

In stock

SKU: IFT00079-3 Category: Brand:

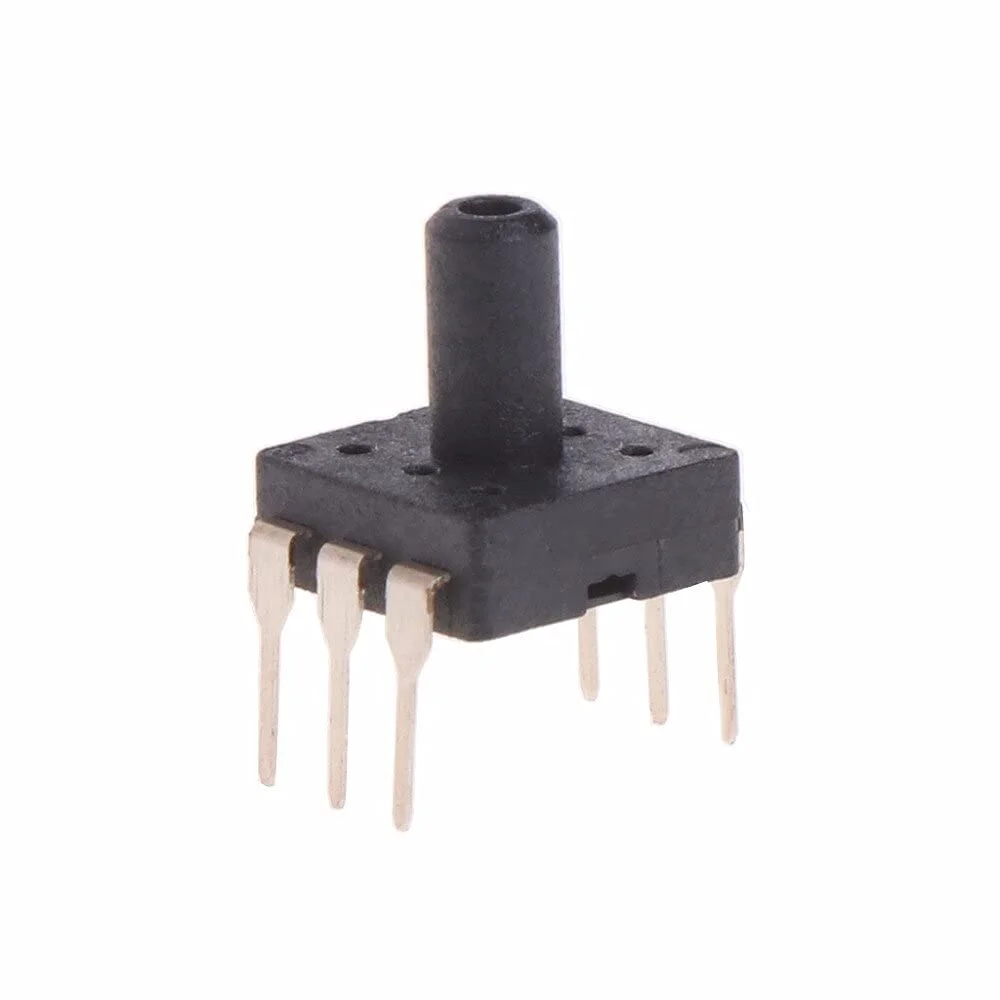

The MPS20N0040D-D is a precision air pressure sensor that measures pressures from 0 to 40 kPa. Housed in a DIP-6 package, it’s ideal for low-pressure sensing applications in medical, industrial, and consumer electronics. The sensor uses a piezoresistive element and produces a small analog output proportional to applied pressure. It requires an external amplifier circuit for signal conditioning.

Key Features of MPS20N0040D-D Air Pressure Sensor:
  • Pressure Range: Measures pressure from 0 to 40kPa (kilopascals).
  • High Sensitivity: Piezoresistive sensing element with high accuracy.
  • Compact DIP Package: Easy integration on breadboards or PCBs.
  • Low Power Consumption: Suitable for portable applications.
  • Analog Output: Voltage output proportional to pressure input.
Technical Specifications of MPS20N0040D-D:
  • Pressure Range: 0–40 kPa
  • Supply Voltage: 5V DC typical
  • Output Type: Differential analog output
  • Sensitivity: ~0.2 mV/kPa (requires amplification)
  • Response Time: <1 ms
  • Operating Temperature: -40°C to +85°C
Mechanical Specifications of MPS20N0040D-D:
  • Package Type: Dual In-line Package (DIP-6)
  • Mounting: Through-hole
  • Port Type: Dual barbed ports for pressure input
  • Body Material: Thermoplastic
Dimensions:
  • Length: 15mm
  • Width: 10mm
  • Height: 12mm (including ports)
  • Pin Pitch: 2.54mm
Mounting Options:
  • Breadboard-Friendly: Easily fits on standard breadboards for prototyping.
  • PCB Mount: Designed for through-hole mounting in PCBs.
Schematic Diagram, Connection, Wiring and Pinout of MPS20N0040D-D:
  • Pin 1: VCC (Supply Voltage)
  • Pin 2: Ground (GND)
  • Pin 3 & 4: Differential Output (+ / -)
  • Pin 5 & 6: Not connected (optional mounting stability)
  • Wiring: Requires external op-amp circuit for signal amplification.
Datasheet of MPS20N0040D-D Air Pressure Sensor:
Applications of MPS20N0040D-D Air Pressure Sensor:
  • Medical Devices: Used in respiratory monitoring and airflow measurement.
  • Industrial Controls: Monitors air pressure in automation systems.
  • Weather Stations: Measures atmospheric pressure changes.
  • Consumer Electronics: Applied in smart gadgets and DIY projects.
  • Embedded Systems: Integrated in microcontroller-based pressure sensing units.
Equivalent of MPS20N0040D-D Air Pressure Sensor:
  • MPX5010: 0-10 kPa analog sensor with internal amplification
  • MPX5100: High-range pressure sensor with 0–100kPa range
  • BMP180: I2C digital pressure sensor (altitude-focused)
  • HX710B: External ADC module for piezoresistive sensors
Package Includes:
  • 1 x MPS20N0040D-D Air Pressure Sensor 0–40kPa DIP-6
