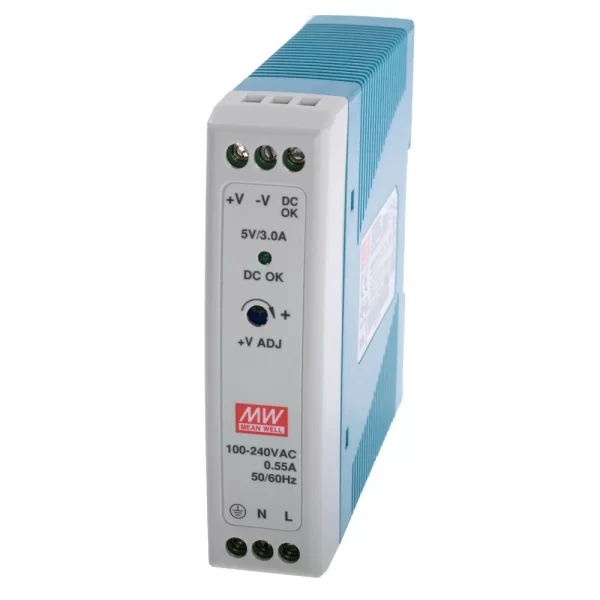

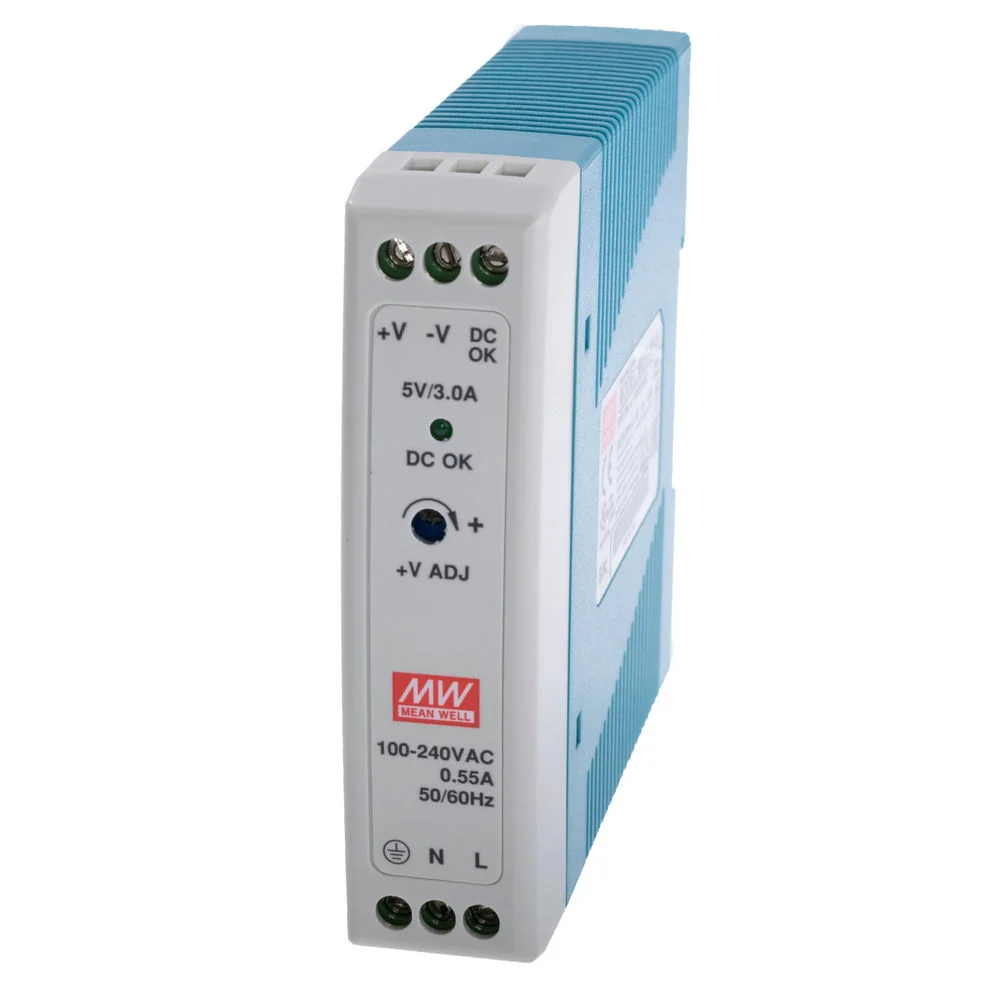

MDR-20-5 Industrial DIN Rail Mount Power Supply 5V 3A 15W

MDR-20-5 Industrial DIN Rail Mount Power Supply 5V 3A 15W is a highly efficient and exceptionally compact switching power supply engineered specifically for industrial control systems and building automation. Designed for quick and secure mounting onto standard DIN rails (TS-35/7.5 or TS-35/15), this unit delivers a stable 5V DC output, crucial for powering sensitive electronics like PLCs, sensors, and microcontrollers. Its narrow profile—at just 22.5mm wide—saves valuable space inside cramped control cabinets, making it a favorite for system integrators. The MDR-20-5 features built-in protection mechanisms against short circuits, overloads, and over-voltages, ensuring reliable operation even in harsh factory floor environments where consistent, regulated power is non-negotiable.

Key Features:

• Ultra-Slim Design: Its narrow 22.5 mm width conserves significant space in tight industrial enclosures and control panels.
• DIN Rail Compatibility: Easily and securely snaps onto standard TS-35/7.5 or TS-35/15 mounting rails for rapid installation.
• High Efficiency: Operates with high efficiency, which minimizes heat generation and reduces long-term energy costs.
• Full Protection Suite: Automatically protects against short circuit, overload, and over-voltage conditions, increasing system reliability.
• LED Indicator: Features a front-panel LED to instantly confirm the unit’s power-on status.

Technical Specifications:

• Input Voltage Range: 85 V AC to 264 V AC (or 120 V DC to 370 V DC)
• Output Voltage: 5 V DC
• Rated Current: 3.0 A
• Rated Power: 15 W
• Efficiency: ≈ 77%
• Working Temperature: -20°C to +70°C
• Insulation Voltage: 3 kV AC Input to Output

Mechanical Specifications:

• Mounting Type: DIN Rail (TS-35/7.5 or TS-35/15)
• Housing Material: UL 94V-0 Rated Plastic Enclosure
• Cooling: Free air convection (No fan required)
• Protection Rating: IP20 (Suitable for indoor cabinet installation)

Dimensions:

• Width: 22.5 mm
• Height: 90 mm
• Depth: 100 mm
• Weight: ≈ 0.15 kg

Pinout and Wiring:

• Input Terminals (L, N, FG): Connect Line (L), Neutral (N), and Frame Ground (FG) for the AC input power supply.
• Output Terminals (+V, +V, -V, -V): These terminals provide the regulated 5V DC output; wire the positive voltage (+V) and negative voltage (-V) to your loads. Multiple terminals allow for easier wiring distribution.
• Installation Note: Use appropriate wire gauges for the current rating and ensure secure clamping in the screw terminals to maintain low contact resistance.

Datasheet Reference:

• Download Datasheet

Commonly Used in:

• Control Cabinets: Powering PLC modules, relays, and HMI displays within industrial panels.
• Building Automation: Supplying DC power to lighting controls, security systems, and environmental sensors.
• Machine Tooling: Providing low-voltage power for integrated electronic controls on manufacturing equipment.

Applications:

• 5V Logic Circuits: Delivering clean, regulated 5V to microcontrollers and single-board computers like Raspberry Pi used in industrial settings.
• Sensor Array Power: Supplying stable power to analog and digital sensors that require a precise 5V reference.
• Emergency Lighting Systems: Used as the main power source within small, critical lighting backup units.

Equivalent Models:

• DR-15-5: A slightly lower wattage (15W) alternative for less demanding applications.
• HDR-30-5: A similar ultra-slim model that provides a higher power output (30W) in the 5V range.

Package Includes:

• 1 x MDR-20-5 Industrial DIN Rail Mount Power Supply 5V 3A 15W
