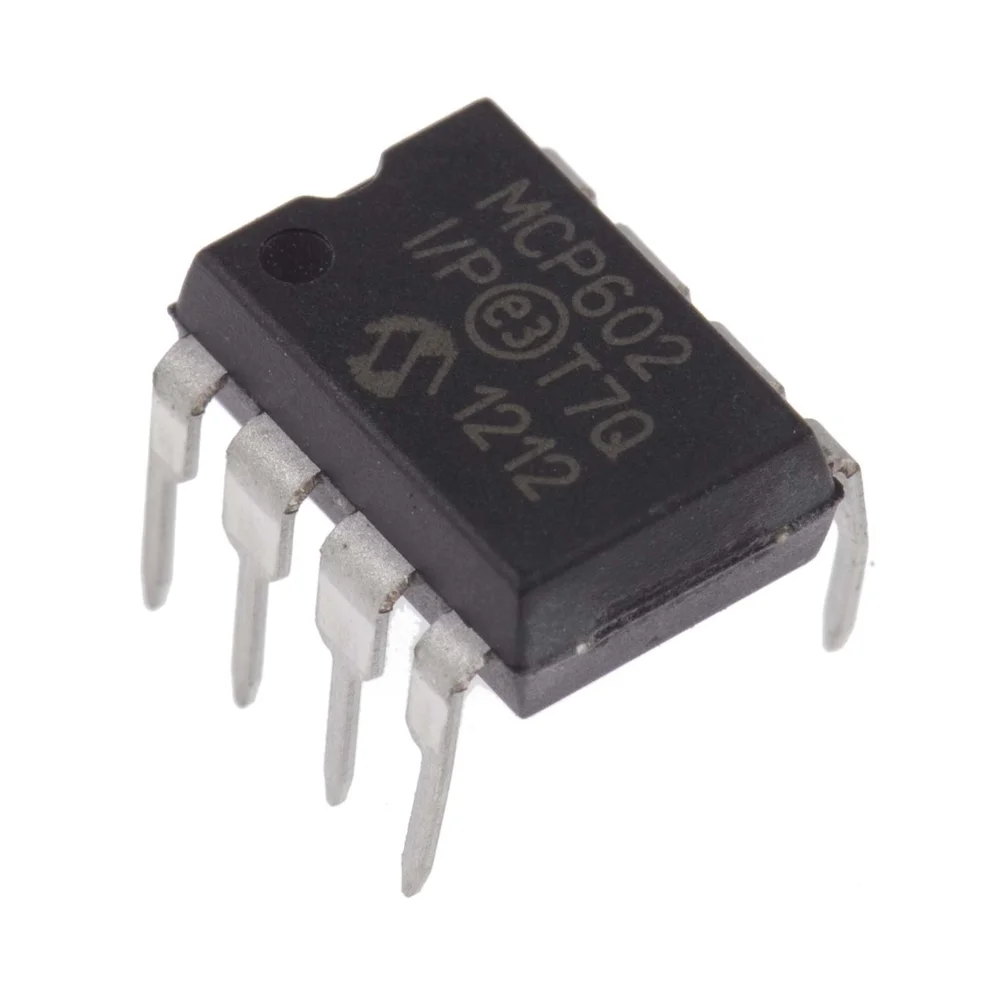

The MCP602-I/SN is a high-performance dual operational amplifier IC featuring rail-to-rail input and output capabilities. It is designed for single-supply operation and is ideal for low-power, precision analog signal processing in embedded and industrial applications. With its low input offset voltage, low bias current, and wide bandwidth, the MCP602 is suited for sensor interfacing, analog filtering, and active signal conditioning circuits.
Key Features of MCP602-I/SN Dual Operational Amplifier:
- Rail-to-Rail Input and Output: Maximizes dynamic range in low-voltage applications.
- Low Input Offset Voltage: Ensures accuracy in precision analog circuits.
- Wide Bandwidth: 10 MHz Gain Bandwidth Product (typical).
- Low Supply Current: Ideal for battery-powered systems (1.0 mA typical per amplifier).
- Dual Amplifier Configuration: Two op-amps in a single 8-pin DIP package.
Technical Specifications of MCP602-I/SN Operational Amplifier:
- Amplifier Type: Dual Op-Amp
- Supply Voltage: 2.7V to 6.0V
- Gain Bandwidth Product: 10 MHz (typical)
- Slew Rate: 0.6 V/µs
- Input Offset Voltage: ±1 mV (maximum)
- Operating Temperature Range: -40°C to +85°C
- Package Type: DIP-8 (Through Hole)
Mechanical Characteristics of MCP602-I/SN:
- Package: Dual Inline Package (DIP-8)
- Mounting Type: Through-Hole
- Pin Count: 8 Pins
- RoHS Compliant: Yes
Dimensions of MCP602-I/SN Dual Operational Amplifier:
- Length: 9.8mm
- Width: 6.4mm
- Height: 3.3mm
- Pin Pitch: 2.54mm
Schematic Diagram, Pinout and Connection of MCP602-I/SN:
- Pin 1: Output A
- Pin 2: Inverting Input A
- Pin 3: Non-Inverting Input A
- Pin 4: VSS (Ground)
- Pin 5: Non-Inverting Input B
- Pin 6: Inverting Input B
- Pin 7: Output B
- Pin 8: VDD (Power Supply)
Datasheet of MCP602-I/SN Dual Operational Amplifier:
Applications of MCP602-I/SN Dual Operational Amplifier:
- Sensor Signal Conditioning: For precise analog front-end circuits.
- Active Filters: Ideal for designing low-pass, high-pass, and band-pass filters.
- Battery-Powered Systems: Low current draw makes it suitable for portable electronics.
- Medical Instruments: Used in low-noise precision circuits.
- Analog-to-Digital Interfaces: Buffers and amplifies signals before ADC input.
Equivalent of MCP602-I/SN Dual Operational Amplifier:
- TLV2372: Low-power rail-to-rail dual op-amp with similar specs
- LM358: Common dual op-amp alternative, though with lower bandwidth
- OPA2333: Precision dual op-amp with rail-to-rail performance and low offset
- MC33202: Low-voltage dual op-amp with similar characteristics
Package Includes:
- 1 x MCP602-I/SN Dual Operational Amplifier IC (DIP-8)
