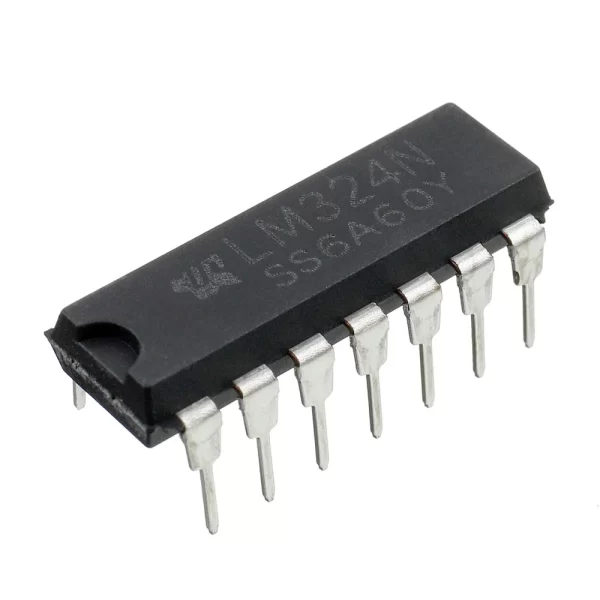

LM324 Quadruple Operational Amplifier DIP-14

LM324 is a low-power, quadruple operational amplifier IC that consists of four independent high-gain op-amps in a single DIP-14 package. It is commonly used in signal conditioning, sensor interfacing, voltage follower circuits, and audio amplification due to its wide power supply range and low offset voltage. The LM324 is ideal for general-purpose applications in industrial, automotive, and consumer electronics.

Key Features of LM324 Quadruple Operational Amplifier DIP-14:

• Quad Op-Amp: Contains four independent op-amps in one IC.
• Low Power Consumption: Operates on minimal supply current per amplifier.
• Wide Supply Range: Operates from 3V to 32V (single supply) or ±1.5V to ±16V (dual supply).
• Internally Frequency Compensated: No external components needed for compensation.
• Short-Circuit Protected: Output is protected against short-circuits to ground.

Technical Specifications of LM324 Quadruple Operational Amplifier DIP-14:

• Number of Amplifiers: 4
• Input Offset Voltage: Typically 2mV
• Input Bias Current: 45nA (typical)
• Gain Bandwidth Product: 1MHz
• Large Signal Voltage Gain: 100 V/mV (typical)
• Supply Voltage Range: 3V to 32V (single supply), ±1.5V to ±16V (dual supply)
• Operating Temperature: 0°C to +70°C (commercial)

Mechanical Specifications of LM324 Quadruple Operational Amplifier DIP-14:

• Package Type: DIP-14 (Dual In-Line Package)
• Pin Count: 14
• Mounting Type: Through-Hole
• Body Material: Epoxy Molded Plastic

Dimensions:

• Body Length: 19.3mm
• Body Width: 6.35mm
• Body Height: 4.57mm
• Lead Pitch: 2.54mm

Mounting Options:

• PCB Mount: Standard through-hole mounting on PCBs.
• Breadboard Friendly: Suitable for prototyping on breadboards due to DIP format.

Schematic Diagram, Connection, Wiring and Pinout of LM324:

• Pin 1: Output 1
• Pin 2: Inverting Input 1
• Pin 3: Non-Inverting Input 1
• Pin 4: Vcc (Positive Supply)
• Pin 5: Non-Inverting Input 2
• Pin 6: Inverting Input 2
• Pin 7: Output 2
• Pin 8: Output 3
• Pin 9: Inverting Input 3
• Pin 10: Non-Inverting Input 3
• Pin 11: GND (Negative Supply)
• Pin 12: Non-Inverting Input 4
• Pin 13: Inverting Input 4
• Pin 14: Output 4

Datasheet of LM324 Quadruple Operational Amplifier DIP-14:

• Download LM324 Datasheet (PDF)

Applications of LM324 Quadruple Operational Amplifier DIP-14:

• Sensor Signal Conditioning: Amplifies and filters sensor output signals.
• Audio Amplification: Used in pre-amplifier and equalizer circuits.
• Voltage Follower (Buffer): Provides impedance matching.
• Comparator Circuits: For threshold detection and logic control.
• Integrator and Differentiator: Used in analog computation and filters.

Equivalent of LM324 Quadruple Operational Amplifier DIP-14:

• LM324N: Same IC in different naming convention
• LM224: Industrial-grade version with wider temp range
• MC33074: High-speed quad op-amp alternative
• TL074: Low-noise JFET-input quad op-amp

Package Includes:

• 1 x LM324 Quadruple Operational Amplifier DIP-14
