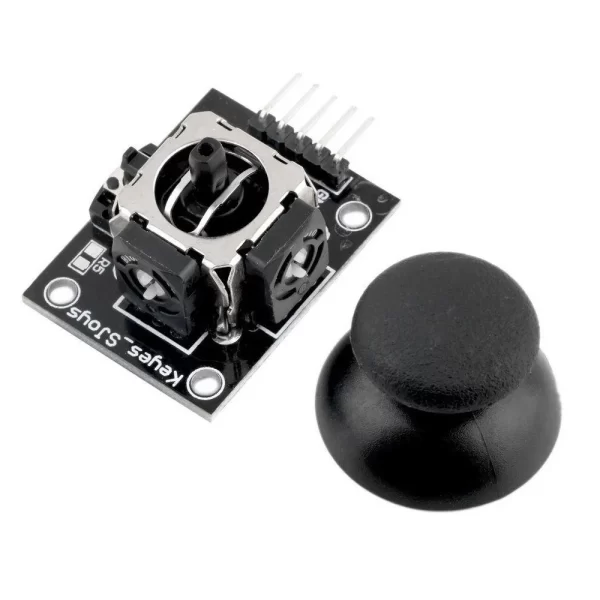

KY-023 PS2 Game Joy Stick Module

KY-023 PS2 Game Joy Stick Module is a versatile input device that provides analog control and a digital button, making it perfect for a wide range of electronic projects. Modeled after the thumbsticks found on PlayStation 2 controllers, this module gives you precise control over two axes of movement and includes a convenient push-down switch. Engineers and hobbyists use it to build remote controls for robots, custom video game controllers, drone navigators, and interactive user interfaces where reliable, multi-directional input is essential.

Key Features:

• Dual-Axis Control: Accurately measures motion along both the X and Y axes, providing two analog outputs.
• Integrated Push Button: A momentary switch is activated by pressing the joystick shaft down, offering a third digital input.
• Analog Outputs: The X and Y axes provide voltage outputs that vary with position, allowing for proportional control.
• Easy Interface: You can quickly connect the module to any microcontroller, such as Arduino or Raspberry Pi, using standard jumper wires.
• Familiar Design: The ergonomic design and feel of a classic game controller thumbstick makes it intuitive for users.
• Durable Construction: Built to withstand repeated use in projects from robotics to gaming.

Technical Specifications:

• Operating Voltage: 3.3 V to 5 V DC
• Interface: Analog for X/Y axis, Digital for Switch
• X/Y-Axis Resistance: 10 kΩ potentiometers
• Output Voltage Range: 0 V to 5 V (with 5V supply) on X and Y pins
• Operating Temperature: -10 °C to +50 °C

Mechanical Specifications:

• Module Type: Breakout PCB with soldered joystick and passive components
• Connector: 5-pin male header
• Joystick Movement: Dual-axis with central click button
• Material: FR4 PCB with plastic and metal components

Dimensions:

• Board Length: ~34 mm
• Board Width: ~26 mm
• Board Thickness: ~27 mm (including joystick)

Pinout and Wiring:

• VCC: Power supply (5 V typical)
• GND: Ground
• VRx: Analog X-axis output
• VRy: Analog Y-axis output
• SW: Digital switch output (active LOW when pressed)
• Wiring Note: Connect VCC and GND to your power source. Connect VRx and VRy to analog input pins on your microcontroller. Wire the SW pin to a digital input pin.

Datasheet Reference:

• While a formal datasheet for this module does not exist, you can find complete usage guides and example code on popular maker websites and forums by searching for “KY-023” or “PS2 joystick Arduino.” The module internally uses two 10K potentiometers and a simple push button switch.

Applications:

• Robotics: Control robotic arms, mobile robots, and drone movements.
• Gaming: Build custom game controllers for emulation or new games.
• RC Vehicles: Create a remote control unit for model cars, boats, and planes.
• Human-Machine Interface: Use as an input device for menus, camera pan/tilt, and other control systems.

Equivalent Models:

• 3-Axis Joystick Module: Some modules include a third axis for twist motion.
• Hall-Effect Joysticks: Offer non-contact sensing for greater longevity and precision.
• Thumbstick Breakout Boards: Similar functionality, but may have a different pin configuration.

Package Includes:

• 1 x KY-023 PS2 Game Joy Stick Module
