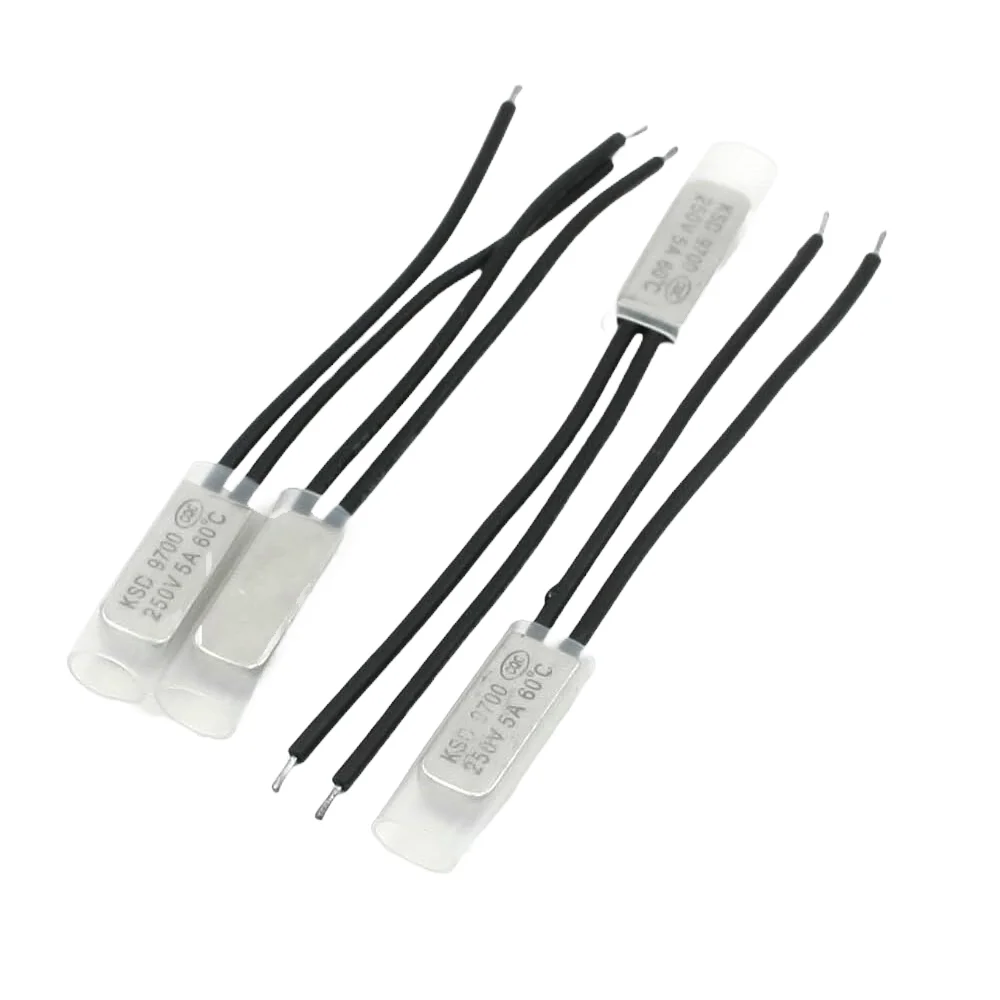

KSD9700 250V 5A Metal Thermostatic Temperature Switch NC 60° C

25.00
You save

In stock

Frequently Bought Together

KSD9700 250V 5A Metal Thermostatic Temperature Switch NC 60°C is a temperature-controlled bimetal switch designed to protect electrical appliances and circuits from overheating. Operating in Normally Closed (NC) mode, it opens at 60°C to break the circuit, preventing thermal damage. Its compact metal casing and high reliability make it suitable for motors, transformers, battery packs, and more.

Key Features:
  • Automatic reset thermal protection for temperature-sensitive devices
  • 60°C cut-off temperature with Normally Closed (NC) operation
  • High durability and fast response time
  • Metal shell for enhanced thermal conductivity and mechanical strength
  • Encapsulated design with electrical insulation
Technical Specifications:
  • Rated Voltage: 250V AC
  • Rated Current: 5A
  • Operating Type: Normally Closed (opens at 60°C)
  • Reset Type: Automatic (re-closes after cooling)
  • Temperature Tolerance: ±5°C
  • Contact Resistance: ≤50mΩ
  • Insulation Resistance: ≥100MΩ
  • Electrical Life: Over 100,000 cycles
Mechanical Specifications:
  • Shell Material: Metal (aluminum alloy)
  • Lead Material: Tinned copper wire
  • Wire Length: Approx. 70mm
  • Enclosure: Heat-shrink insulated
Dimensions:
  • Body Length: 20mm
  • Body Width: 10mm
  • Thickness: 4.5mm
  • Mounting Hole: None (surface mount or glue pad)
Mounting Options:
  • Can be attached directly to heating components
  • Use thermal adhesive tape, clamps, or sleeves for proper thermal contact
  • Keep switch close to heat source for faster response
Schematic Diagram, Connection, Wiring and Pinout:
  • Two lead wires: Non-polarized connection
  • Connect in series with the load or AC input line
  • When temperature is below 60°C, circuit is closed
  • At 60°C, circuit opens and breaks the current path
Datasheet/User Manual:
  • KSD9700 60°C NC Datasheet and Mounting Guide (PDF)
Applications:
  • Battery packs and chargers
  • Electric motors and transformers
  • Heating pads, electric blankets
  • Power supplies and inverters
  • Household appliances and lighting fixtures
Equivalent:
  • BW9700 60°C NC Thermostat
  • Yuanze KSD301 NC 60°C (Similar size and behavior)
  • Thermal Guard D60 NC
Package Includes:
  • 1 x KSD9700 250V 5A Metal Thermostatic Temperature Switch NC 60°C
