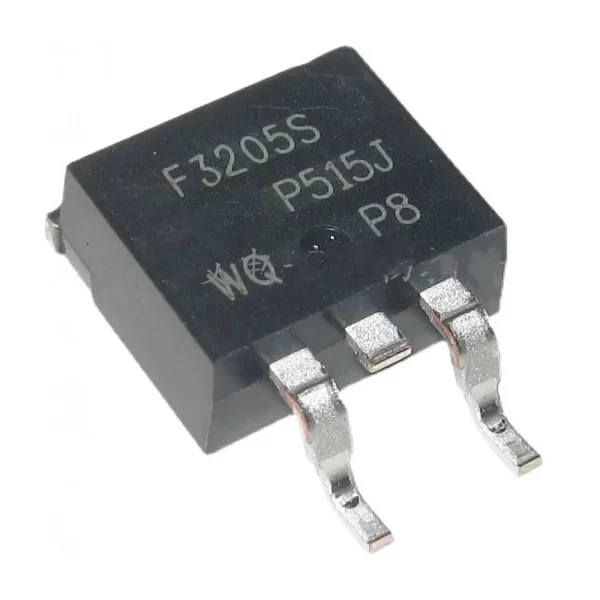

IRF3205S N-Channel Power MOSFET TO-263

Save 10% 22.5025.00
You save

In stock

SKU: IFT00013-01 Category: Brand:

IRF3205S N-Channel Power MOSFET (TO-263) delivers high-efficiency switching and low conduction losses. Designers use it for automotive, DC-DC converters, motor control, and high-current switching applications where compact TO-263 packaging and low RDS(on) improve performance.

Key Features:
  • Low On-Resistance: RDS(on) typically ≤ 8 mΩ @ VGS = 10 V, enabling efficient conduction.
  • High Current Capability: Supports continuous drain current up to 110 A with proper thermal management.
  • Fast Switching: Optimized for low gate charge and reduced switching losses.
  • TO-263 Surface-Mount Package: Compact footprint for high-density power designs.
  • High Avalanche Energy: Rugged design ensures reliability in demanding conditions.
  • Low Gate Charge: Reduces drive requirements for efficient control circuitry.
Technical Specifications:
  • Drain-Source Voltage (VDSS): 55 V
  • Continuous Drain Current (ID): 110 A (at TC = 25 °C)
  • On-Resistance (RDS(on)): ≤ 8 mΩ max @ VGS = 10 V
  • Gate Threshold Voltage (VGS(th)): 2.0 V to 4.0 V
  • Total Gate Charge (Qg): Typ ~67 nC @ VGS = 10 V
  • Input Capacitance (Ciss): ~6100 pF
  • Operating Junction Temperature: -55 °C to +175 °C
  • Gate-Source Voltage Range (VGS): ±20 V
Mechanical Specifications:
  • Package: TO-263 (D²PAK) surface-mount power package
  • Mounting: SMD reflow soldering or wave solder with heatsink pad
  • Lead Finish: Tin-plated leads for solderability and durability
  • Body Material: Molded epoxy for electrical insulation
Dimensions:
  • Body Width: ~10.1 mm
  • Body Length: ~9.9 mm
  • Height: ~4.5 mm
  • Lead Pitch: ~2.54 mm typical
Pinout and Wiring:
  • Pin 1: Gate – drive input for switching
  • Pin 2 (Tab + Pins): Drain – main current-carrying terminal, connected to heat dissipation pad
  • Pin 3: Source – return path to ground or load
  • Wiring Note: Use short, wide traces for drain and source to minimize resistance and inductance
Datasheet Reference:
Applications:
  • Automotive Systems: Power management and load switching
  • DC-DC Converters: Efficient high-current switching
  • Motor Drivers: Suitable for brushed and brushless DC motor control
  • UPS and Inverters: Use in power conversion and backup systems
  • Battery Protection: High-current discharge and charging paths
Equivalent Models:
  • IRF3205: Same die in TO-220 package
  • AUIRFS3207: Automotive-qualified higher-current alternative
  • STP75NF75: N-channel MOSFET with similar voltage and current ratings
Package Includes:
  • 1 x IRF3205S N-Channel Power MOSFET (TO-263)

Additional information

Weight 2 g
