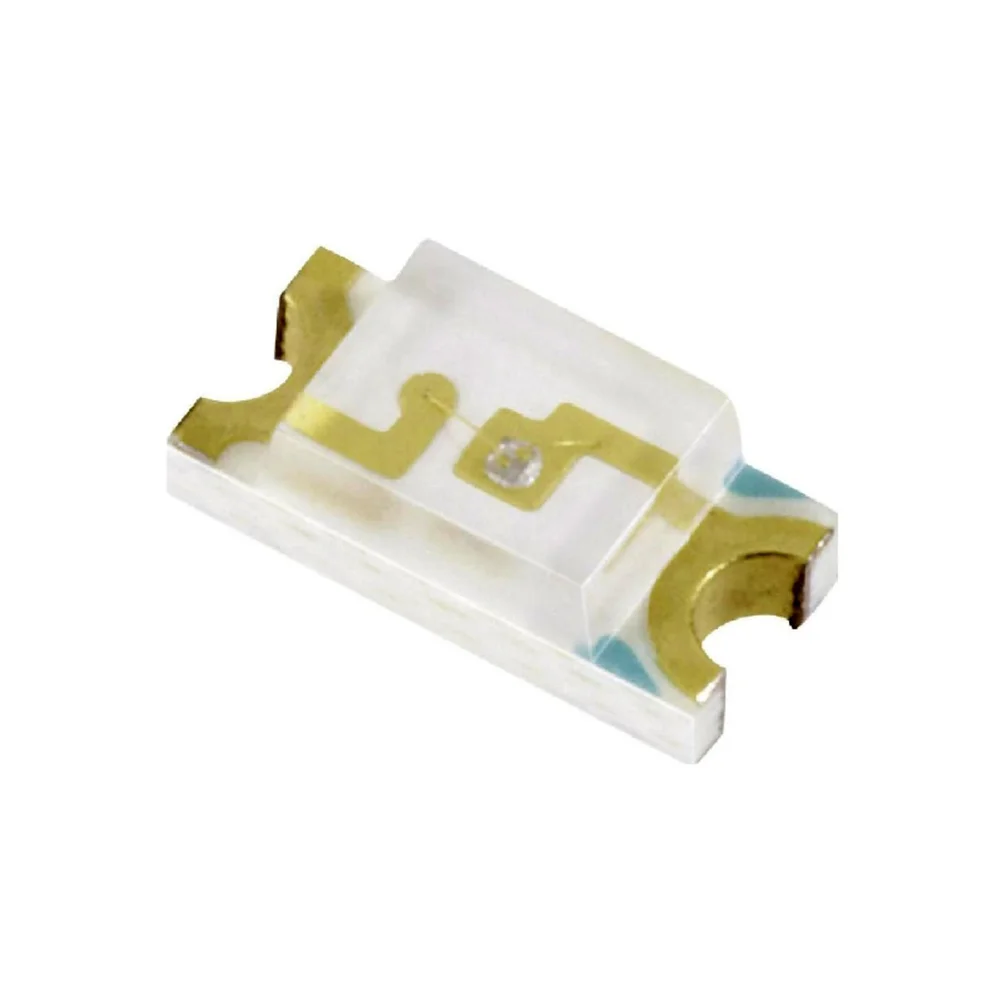

Green SMD LED – 1206

The Green SMD LED – 1206 is a compact surface-mount light-emitting diode ideal for status indicators, backlighting, and signal illumination in electronic circuits. Its small 1206 package makes it suitable for dense PCB layouts and automated assembly processes. It offers bright green light output with low power consumption and long operational life.

Key Features of Green SMD LED – 1206:

• Compact Package: Standard 1206 SMD footprint for space-efficient PCB design.
• Bright Green Illumination: Provides vibrant green light for status and indicators.
• Low Power Consumption: Operates efficiently at low current levels.
• Long Lifespan: Rated for tens of thousands of hours under normal conditions.
• Wide Viewing Angle: Enables better visibility from different directions.

Technical Specifications of Green SMD LED – 1206:

• Package Type: 1206 SMD (3.2mm × 1.6mm)
• Color: Green
• Forward Voltage: 2.0V to 2.2V (typical)
• Forward Current: 20mA (maximum)
• Luminous Intensity: 200-300 mcd (typical)
• Wavelength: 520nm – 530nm
• Operating Temperature Range: -40°C to +85°C

Mechanical Specifications of Green SMD LED – 1206:

• Package Dimensions: 3.2mm (L) × 1.6mm (W) × 1.1mm (H)
• Mounting Type: Surface-mount (SMT)
• Polarity Mark: Cathode side marked for easy orientation
• Encapsulation: Water-clear or diffused epoxy

Dimensions:

• Length: 3.2mm
• Width: 1.6mm
• Height: 1.1mm
• Lead Pitch: Standard 1206 footprint

Mounting Options:

• Reflow Soldering: Compatible with standard SMT reflow soldering processes.
• Manual Soldering: Can be soldered with low-temperature irons using proper technique.

Schematic Diagram, Connection, Wiring and Pinout of Green SMD LED – 1206:

• Connection: Connect the anode to positive voltage and cathode to ground via resistor.
• Wiring: Requires a current-limiting resistor to prevent overcurrent damage.
• Pinout: Anode (+) and Cathode (–) marked; refer to datasheet for layout.

Datasheet of Green SMD LED – 1206:

• Download Green SMD LED 1206 Datasheet (PDF)

Applications of Green SMD LED – 1206:

• Indicators: Used in control panels and devices to show status.
• Backlighting: Suitable for keypads, displays, and switches.
• Wearable Electronics: Used for low-power signal lighting.
• Consumer Electronics: Used in gadgets and appliances for visual alerts.
• Automotive Instrumentation: Interior dash indicators and control panels.

Equivalent of Green SMD LED – 1206:

• LTST-C150KGKT: High-brightness green LED with similar footprint
• APG1608SGC: Compatible 1206 package with green output
• Hyper Green LED 1206: Alternative with higher intensity

Package Includes:

• 1 x Green SMD LED – 1206
