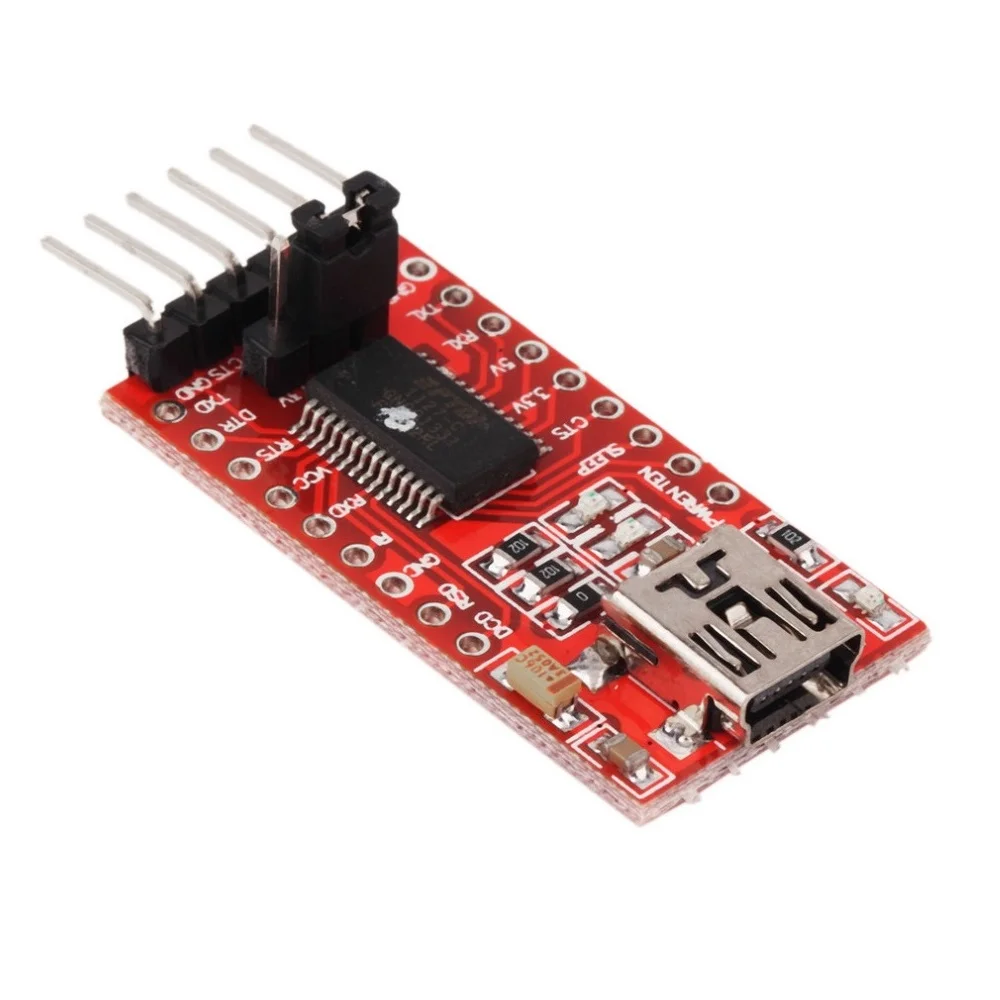

FT232RL USB to TTL 3.3V/5V FTDI Serial Adapter Module

FT232RL USB to TTL Serial Adapter Module is an essential tool for any electronics enthusiast or engineer working with microcontrollers and other embedded systems. This versatile module provides a reliable bridge between your computer’s USB port and a device’s TTL serial interface, making it perfect for programming boards like the Arduino Pro Mini, ESP8266, or other microcontrollers that lack a built-in USB port. Leveraging the powerful FTDI FT232RL chip, it ensures stable and fast data communication. You can easily switch between 3.3V and 5V logic levels, giving you the flexibility to work with a wide variety of hardware without needing an extra level shifter.

Key Features:

• Genuine FTDI FT232RL Chip: This module uses the authentic FTDI chip, providing excellent driver support for Windows, macOS, and Linux operating systems.
• Dual Voltage Support: A selectable jumper allows you to effortlessly switch between 3.3V and 5V logic levels, ensuring compatibility with a broad range of microcontrollers and sensors.
• Integrated Power LED: A built-in power indicator LED gives you a quick visual cue that the module is correctly powered on.
• TX/RX Status LEDs: Dedicated LEDs for transmit (TX) and receive (RX) provide real-time feedback, helping you quickly debug serial communication issues.
• DTR Pin: The DTR (Data Terminal Ready) pin is particularly useful for auto-resetting boards like the Arduino Pro Mini, streamlining your programming workflow.
• Compact and Robust Design: The module’s small form factor and standard pin header make it easy to use with breadboards or integrate into your final project.

Technical Specifications:

• Chipset: FTDI FT232RL
• Interface: USB 2.0 (Type-A) to TTL Serial
• Logic Levels: Selectable 3.3V or 5V DC
• Power Supply: USB bus-powered
• Supported OS: Windows 10/8.1/8/7, macOS, Linux
• Baud Rate: Up to 3 Mbps

Mechanical Specifications:

• Connector: 6-pin header for serial communication, USB Type-A male connector.
• LED Indicators: Power, TX (Transmit), RX (Receive).
• Voltage Selection: Jumper pin for selecting 3.3V or 5V output.
• Material: High-quality PCB with clear silkscreen labels.

Dimensions:

• Board Length: ~36 mm
• Board Width: ~17.5 mm
• Board Thickness: ~1.6 mm

Pinout and Wiring:

• DTR: Data Terminal Ready (often used for auto-reset).
• RXD: Receive Data (connects to the microcontroller’s TX).
• TXD: Transmit Data (connects to the microcontroller’s RX).
• VCC: Power supply output (selectable 3.3V or 5V).
• CTS: Clear to Send (hardware flow control).
• GND: Ground.
• Wiring Note: Connect the module’s TXD pin to your microcontroller’s RX pin and the module’s RXD pin to your microcontroller’s TX pin. Also, ensure the VCC and GND pins are correctly connected.

Datasheet Reference:

• Download Datasheet

Commonly Used In:

• Programming Microcontrollers: A standard tool for flashing firmware onto boards like the Arduino Pro Mini, ESP8266 modules, and other custom-made circuits.
• Serial Communication: Use it to establish a serial port connection with a computer for data logging or debugging embedded systems.

Applications:

• ESP8266 and ESP-01 Flashing: Easily program and debug Wi-Fi modules for IoT projects.
• Arduino Pro Mini Programming: Upload code to the popular, compact Arduino Pro Mini without needing a separate programmer.
• GPS and Bluetooth Modules: Interface with serial-based GPS receivers or Bluetooth modules for data retrieval and configuration.
• Embedded System Debugging: Monitor data output from your microcontroller in real-time using a serial terminal on your computer.

Equivalent Models:

• CP2102: A popular, lower-cost alternative that also provides reliable USB to TTL serial conversion.
• CH340G: A very common and budget-friendly serial converter often used in many clone Arduino boards and modules.

Package Includes:

• 1 x FT232RL USB to TTL 3.3V/5V FTDI Serial Adapter Module
