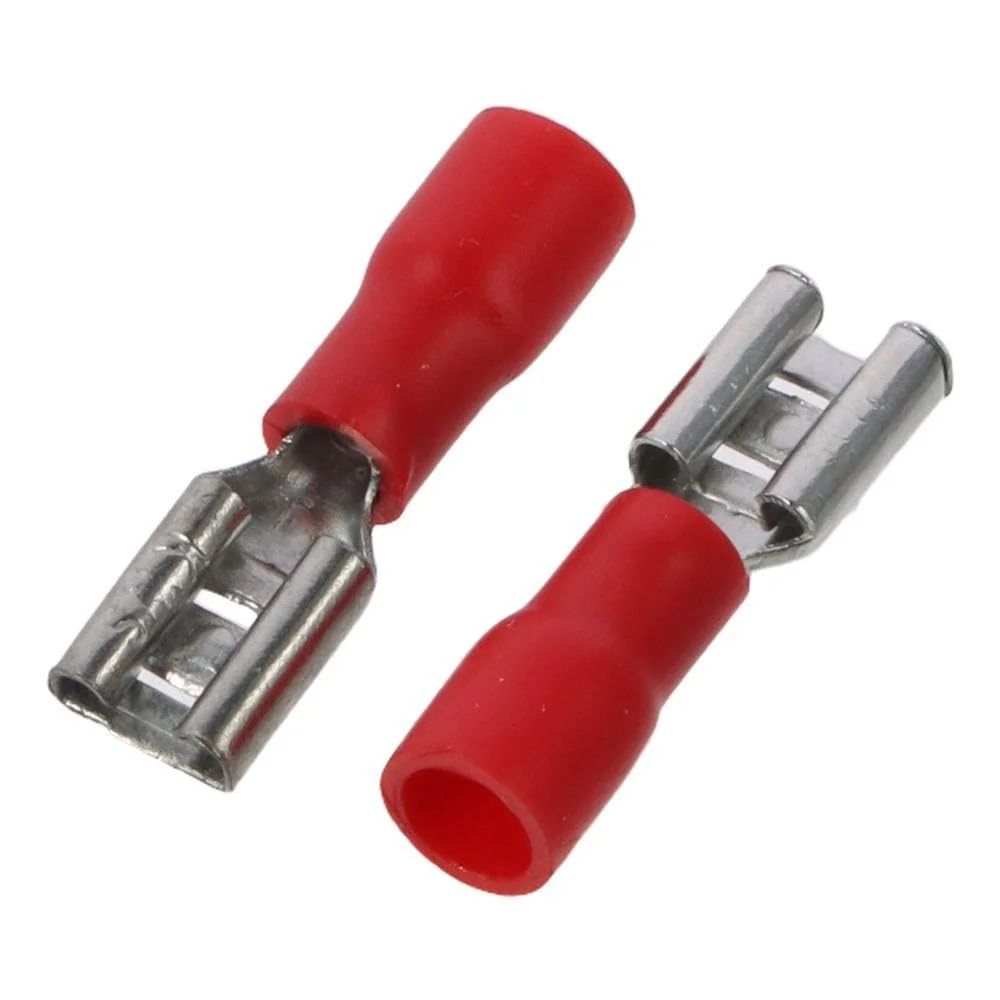

FDD1.25-187 Insulated Quick Disconnect Bullet Female Connector

FDD1.25-187 Insulated Quick Disconnect Bullet Female Connector is an essential wiring component that allows for rapid, reliable, and insulated connection and disconnection of electrical circuits. This specific female bullet terminal is engineered for use with 22-16 AWG conductors, providing a secure crimp and pairing seamlessly with corresponding male bullet terminals. The pre-insulated nylon housing not only ensures electrical safety by preventing accidental contact but furthermore color-codes the connection for easy size identification, which streamlines assembly and maintenance processes. Technicians rely on the FDD1.25-187 to establish durable connections in automotive, marine, and industrial environments where space is limited and serviceability is critical. Therefore, choosing this terminal guarantees fast wire termination and excellent strain relief for long-lasting performance.

Key Features:

• Quick Disconnect Functionality: Allows for fast, tool-free connection and separation of circuits, significantly speeding up repair or component replacement.
• Insulated Housing: The nylon insulation provides reliable dielectric strength and protects against short circuits, enhancing user and system safety.
• Color-Coded for AWG: Features red insulation, designating the connector for 22 AWG to 16 AWG (0.5 mm² to 1.5 mm²) wire sizes, ensuring correct application.
• High Conductivity Metal: Constructed from tin-plated copper or brass, this component guarantees low resistance and optimal current flow.
• Crimp-On Termination: Easily installs onto the conductor using standard ratcheting crimp tools, creating a secure, permanent mechanical and electrical bond.

Technical Specifications:

• Terminal Type: Bullet Female (Receptacle)
• Wire Gauge Range (AWG): 22 – 16 AWG
• Wire Gauge Range (Metric): 0.5 – 1.5 mm²
• Maximum Current Rating: 10 A (Dependent on wire gauge)
• Max Voltage Rating: 300 V
• Maximum Temperature: 75°C (Insulation Dependent)
• Mating Tab Width (Pin Diameter): 4.75 mm (≈ 0.187 inches)

Mechanical Specifications:

• Terminal Material: Brass or Copper Alloy
• Plating: Tin-plated
• Insulation Material: Nylon / PVC (Red)
• Insulation Style: Fully Insulated, Flared Barrel (Allows easier wire insertion)
• Mating Cycle Durability: Offers good durability for repeated connection and disconnection in service environments.

Dimensions:

• Total Length: ≈ 20.0 mm
• Crimp Barrel Diameter: ≈ 4.0 mm
• Bullet Receptacle Inner Diameter: ≈ 4.75 mm
• Insulation Diameter: ≈ 7.0 mm
• Compatibility: Mates with corresponding FDD1.25 series male bullet terminals.

Pinout and Wiring:

• Wiring Process: Strip the insulation from the wire (22-16 AWG) to match the length of the metal crimp barrel.
• Termination: Insert the stripped wire into the terminal barrel and use an insulated terminal crimping tool to secure the connection.
• Mating Connection: Align the female receptacle (FDD1.25-187) with the male pin and push firmly to establish the connection.
• Disconnection: Simply pull the male and female terminals apart without needing any specialized tools.

Datasheet Reference:

• Download FDD1.25-187 Series Connector Datasheet

Commonly Used in:

• Automotive Wiring: Frequently used for signal and low-current accessory connections in cars, trucks, and motorcycles.
• Marine Applications: The insulated nature helps protect connections in moderately damp environments.
• Home Appliances: Providing service connections within refrigerators, washing machines, and HVAC systems.

Applications:

• Harness Assembly: Creating modular wiring harnesses that allow individual components to be easily plugged in or swapped out.
• Prototyping: Ideal for temporary or test connections where reliable, repeated assembly and disassembly is necessary.
• Instrument Wiring: Establishing connections for small motors, sensors, or indicators in industrial control panels.

Equivalent Models:

• PIDG (AMP/TE Connectivity): The PIDG series offers similar insulated bullet terminals, representing a common industry standard.
• FD series (Various Manufacturers): Many manufacturers use FD or FDD naming conventions (e.g., FD 1-4.75) for this size and type of female disconnect terminal.
• Insulated Receptacle 16-22 AWG / 0.187″: Generic equivalents sold under various brand names that match the physical and electrical specifications.

Package Includes:

• 1 x FDD1.25-187 Insulated Quick Disconnect Bullet Female Connector
