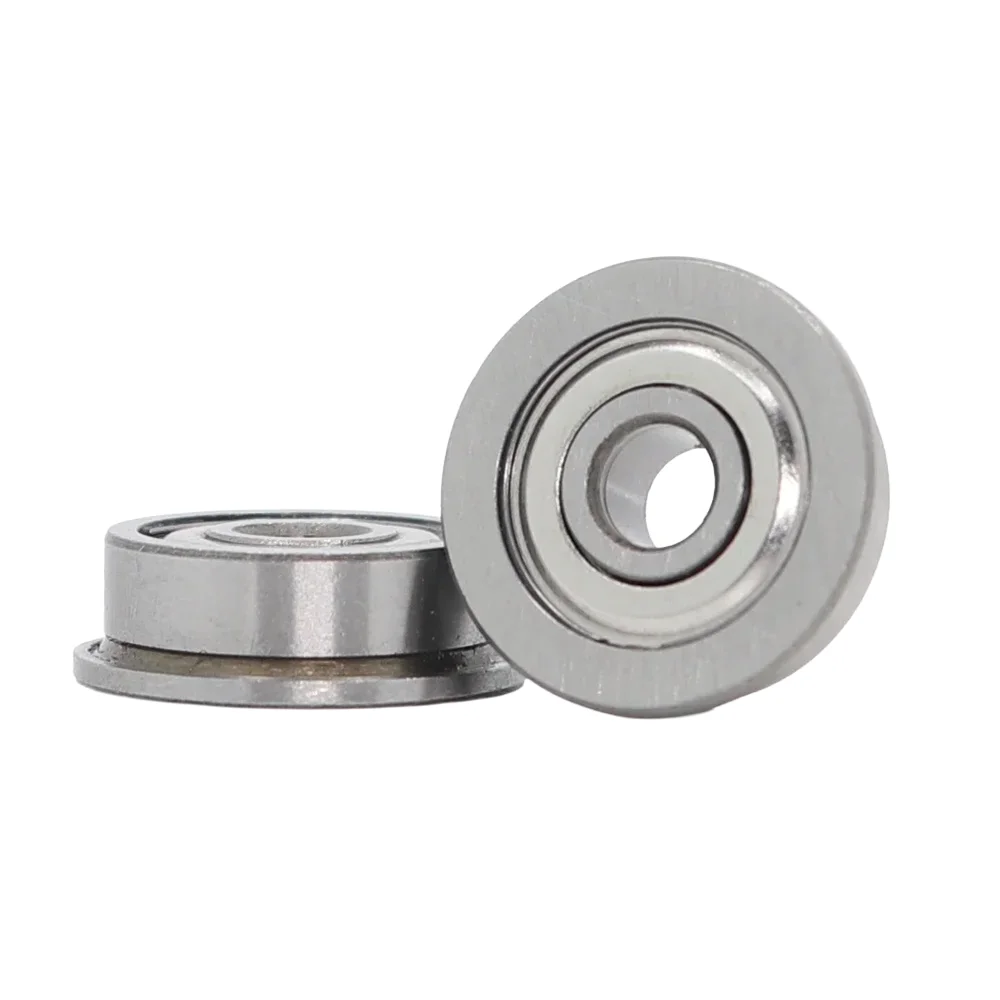

F688ZZ Flanged Ball Bearing

F688ZZ Flanged Ball Bearing is a high-precision, deep groove ball bearing with double metal shields and an integrated flange, offering both axial and radial load handling capabilities. Its 8mm inner diameter and 16mm outer diameter make it ideal for small machinery, robotics, 3D printers, and electric motors, where axial positioning and compact design are essential.

Key Features:

• Flanged Design: Built-in flange for secure axial positioning and simplified installation.
• Double Shielded (ZZ): Metal shields on both sides prevent contamination and retain lubricant.
• Low Friction: Enables smooth, quiet rotation under load.
• High Precision: Tight tolerances ensure consistent performance in demanding setups.
• Corrosion Resistant: Chrome steel construction resists wear and rust.

Technical Specifications:

• Bearing Model: F688ZZ
• Inner Diameter (ID): 8mm
• Outer Diameter (OD): 16mm
• Width: 5mm
• Flange Outer Diameter: 18mm
• Material: Chrome Steel (GCr15)
• Shield Type: ZZ (double metal shields)
• Dynamic Load Rating: Approx. 1,100N
• Static Load Rating: Approx. 450N
• Lubrication: Pre-lubricated with grease

Mechanical Dimensions:

• Bore Diameter: 8mm
• Outer Diameter: 16mm
• Overall Width: 5mm
• Flange Thickness: Approx. 0.5mm
• Flange Diameter: 18mm

Mounting Options:

• Press Fit: Can be pressed into housings with minimal axial play.
• Flange Mount: Flange prevents axial movement in one direction, simplifying alignment.
• Set Screw/Collar: Used with shafts or rods for secured attachment.

Connection and Usage Notes:

• Orientation: Flange side typically faces outward for axial constraint.
• Pre-lubrication: No additional lubrication needed before installation.
• Use with Shafts: Designed for 8mm diameter shafts or rods.

Datasheet and Documentation:

• Download F688ZZ Ball Bearing Datasheet (PDF)

Applications:

• 3D Printers: Smooth movement and long-lasting reliability.
• RC Models and Drones: Ensures stable shaft alignment and minimal vibration.
• Electric Motors: Supports both axial and radial loads in compact designs.
• Automation Systems: Used in linear stages and actuators for precise motion.
• DIY Robotics: Ideal for joints and drive systems in hobby and professional robots.

Equivalent Models:

• MR688ZZ: Similar bearing without a flange
• LF-688ZZ: Equivalent flanged bearing from other brands
• F688 2RS: Same dimensions with rubber seals instead of metal shields

Package Includes:

• 1 x F688ZZ Flanged Ball Bearing
