F625ZZ Flanged Ball Bearing

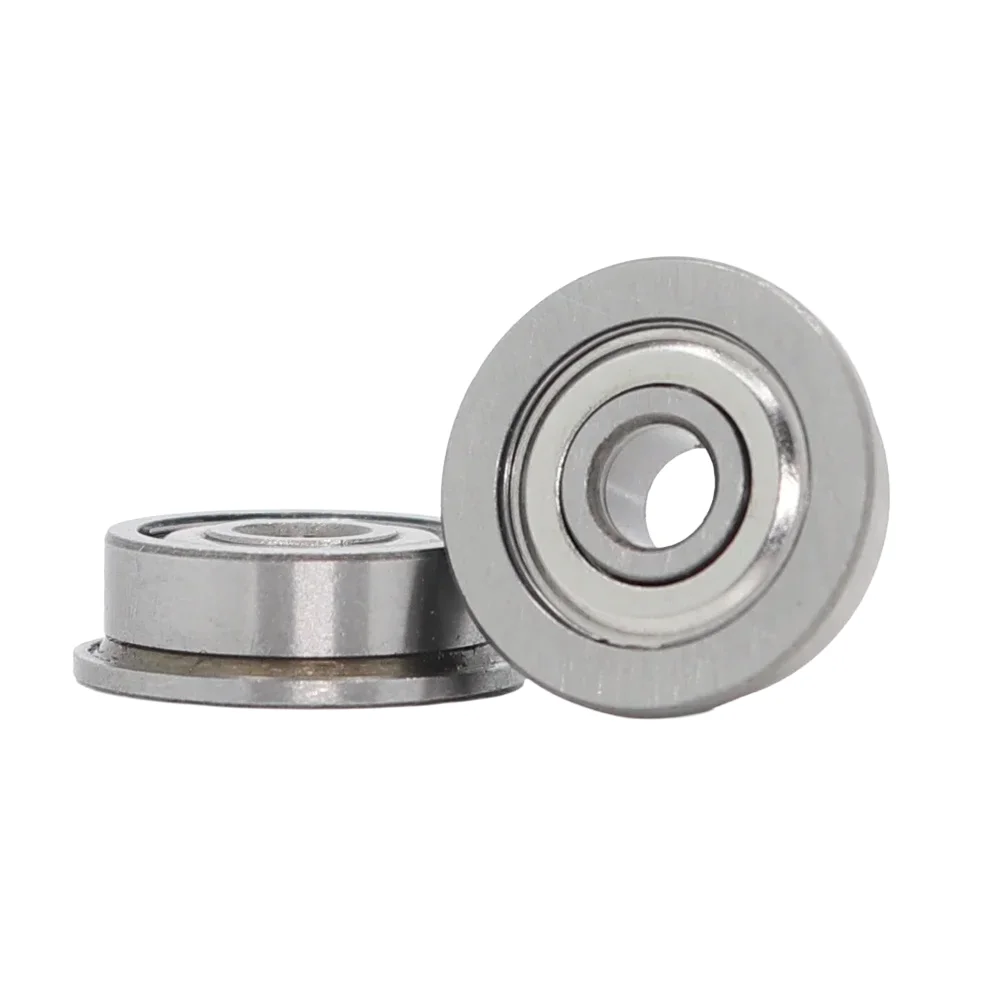

F625ZZ Flanged Ball Bearing is a high-quality deep groove radial bearing with a flanged outer ring and double metal shielding. It is designed for precise, low-friction rotation and easy mounting in mechanical assemblies where axial positioning is important. The “F” prefix stands for flanged, “625” indicates the size, and “ZZ” denotes double metal shields on both sides for dust and grease protection.

Key Features:

• Flanged Design: Provides easy axial location during assembly.
• Double Shielded (ZZ): Protects bearing from contaminants and retains lubrication.
• Deep Groove Construction: Supports radial and moderate axial loads.
• Low Noise and Vibration: Ideal for high-speed applications.
• Corrosion Resistant: Made with chrome steel for durability.

Technical Specifications:

• Model: F625ZZ
• Material: Chrome steel (GCr15)
• Bore Diameter: 5mm
• Outer Diameter: 16mm
• Flange Outer Diameter: 18mm
• Width: 5mm
• Flange Thickness: 1mm (approx.)
• Shield Type: ZZ (Double metal shielded)
• Lubrication: Pre-lubricated with grease
• Dynamic Load Rating: 1.38 kN (approx.)
• Static Load Rating: 0.57 kN (approx.)

Mechanical Specifications:

• Type: Deep groove ball bearing
• Number of Shields: 2 (both sides)
• Flange: Integrated flange for accurate axial positioning
• Color: Metallic silver
• Weight: Approx. 4g

Mounting Options:

• Press Fit: Can be press-fitted into housings with proper tolerances.
• Screw Secured: Flange allows secure mounting using bolts or clips.

Schematic Diagram, Connection, Wiring and Pinout:

• Schematic: Single row radial bearing with flanged outer ring.
• Connection: Mounted on shafts with outer ring fixed using flange.
• Pinout: Not applicable for mechanical bearings.

Datasheet and Documentation:

• Download F625ZZ Bearing Datasheet (PDF)

Applications:

• 3D Printers: Ensures smooth linear motion and spindle support.
• Robotics: Used in arms, joints, and wheels for precision movement.
• Electric Motors: Ideal for miniature motors and gearboxes.
• DIY Projects: Widely used in hobby CNC, laser cutters, and mechanisms.
• Rollers and Guides: Suitable for use in belt and pulley systems.

Equivalent Models:

• MR625ZZ: Metric deep groove bearing without flange, same size
• LF-625ZZ: Similar bearing from NSK or NTN with flange
• 625ZZ: Standard version without flange

Package Includes:

• 1 x F625ZZ Flanged Ball Bearing
