F624ZZ FLANGED BEARING

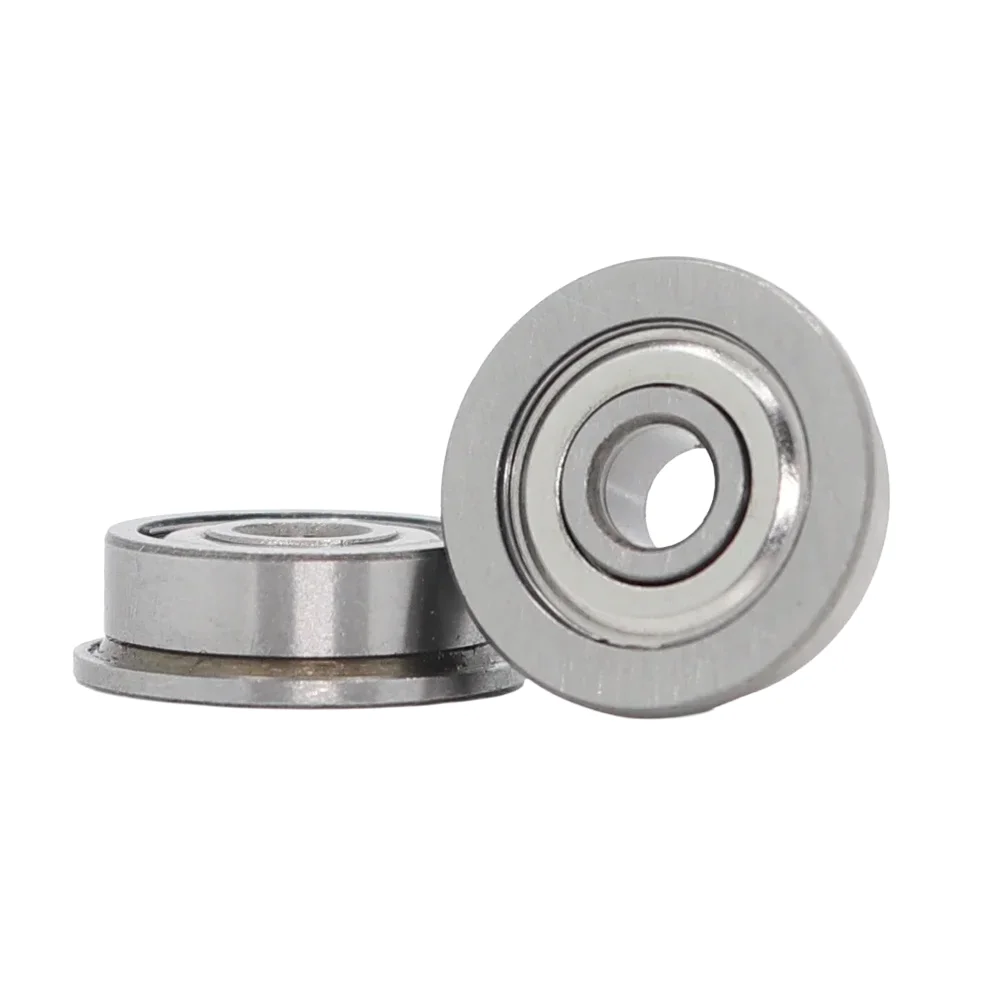

These F624ZZ Flanged Ball Bearing, F624ZZ Bearing is made of Chrome Steel, the bearing is metal shielded from both sides. It has a 4mm inner diameter, a 13mm outer diameter, a 5mm thickness, and a 15mm flange. Ball bearings of this size are ideal for precision work and applications that require a lot of functional mechanical parts, such as mechanical equipment, electrical instruments, toys, doors, and windows.

Roller bearings use rolling elements, in this case, balls, to reduce rotational friction and support rotational and axial loads. The load is transmitted through the balls from an outer to an inner race and due to the fact that the balls are rotating, there is a much lower coefficient of friction compared to two surfaces sliding over each other. In most cases, one of the races is stationary, while the other is attached to a rotating assembly.

Both sides of this F624ZZ bearing are shielded, protecting against dirt and ensuring the lubrication well contained, which improves durability and lifetime of the bearing. A typical application of this bearing is to support and guide the motion of timing belt systems, where the flanged lip keeps the belt contained. Normally two of these F624ZZ bearings are used face to face.

• • Item: F624 ZZ Flanged Ball Bearing
  • Type: Deep Groove Ball Bearing
  • Closures: Metal Shields

Package Includes:

• • 1 x F624ZZ Flanged Ball Bearing
