F608ZZ Flanged Ball Bearing

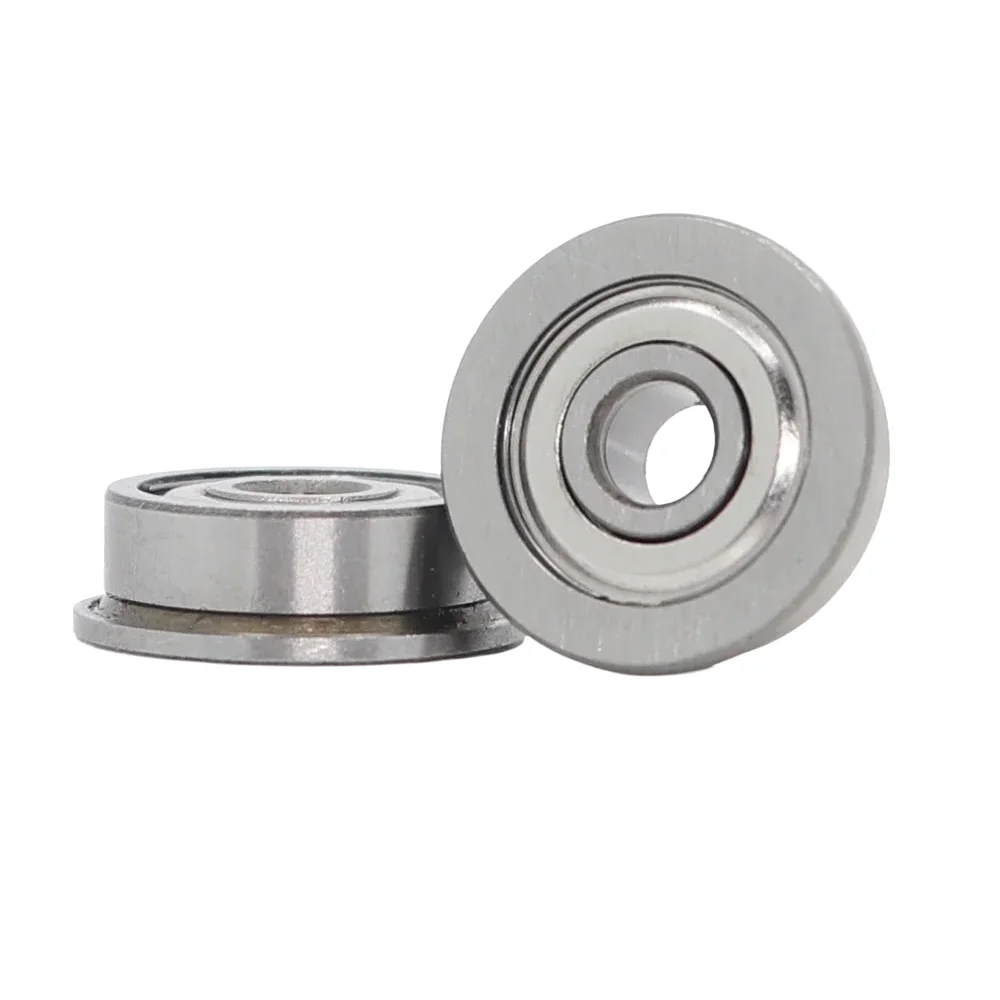

F608ZZ Flanged Ball Bearing is a compact deep groove ball bearing featuring an 8mm inner diameter, 22mm outer diameter, and built-in metal shields on both sides (ZZ). The integrated flange allows secure axial positioning, making it ideal for mechanical assemblies where axial constraints are critical, such as 3D printers, motors, gearboxes, and pulleys.

Key Features:

• Flanged Design: Allows easy mounting and axial positioning in housings or bores.
• Double Shielded (ZZ): Protects the bearing from dust and debris, ensuring longer life.
• Pre-lubricated: Factory-lubricated with grease for smooth and maintenance-free operation.
• High-Speed Capability: Supports high RPMs with low friction and noise.
• Corrosion Resistant: Made from carbon steel or stainless steel (depending on variant).

Technical Specifications:

• Bearing Code: F608ZZ
• Inner Diameter (ID): 8mm
• Outer Diameter (OD): 22mm
• Width: 7mm
• Flange Diameter: 26mm
• Flange Thickness: 1.0mm (typical)
• Type: Deep groove ball bearing
• Shielding: Double metal shields (ZZ)
• Material: Chrome steel or stainless steel (varies by manufacturer)

Mechanical Specifications:

• Ball Material: Steel
• Cage Material: Steel
• Number of Balls: Typically 7–9
• Static Load Rating: Approx. 480N (varies)
• Dynamic Load Rating: Approx. 960N (varies)
• Max RPM: Up to 32,000 RPM (unloaded)

Mounting Options:

• Flanged Fit: Easy drop-in fit into housings with retaining capability.
• Press Fit: Can be press-fitted on the shaft or into the housing bore.
• Screw Mount: Use flange holes (if provided) or supporting brackets for axial hold.

Schematic Diagram, Connection, Wiring and Pinout:

• Schematic: Radial deep groove bearing with outer flange ring.
• Pinout: Not applicable (mechanical component).
• Connection: Shaft inserted through the inner race; housing supports the outer race via flange.

Datasheet and Documentation:

• Download F608ZZ Bearing Datasheet (PDF)

Applications:

• 3D Printers: Used in rollers, belt tensioners, and motor mounts.
• Electric Motors: Supports rotating shafts with reduced vibration.
• CNC Machines: Ensures precision movement in linear and rotary axes.
• Robotics: Ideal for joints and wheel hubs in compact designs.
• Pulley Systems: Common in timing belt tensioners and idler wheels.

Equivalent Models:

• MF608ZZ: Metric flanged version with similar dimensions and shields
• 608ZZ + Flange Housing: Combination of standard 608ZZ bearing with a flange bracket
• R8ZZ Flanged: Inch-series bearing (requires dimension comparison)

Package Includes:

• 1 x F608ZZ Flanged Ball Bearing
