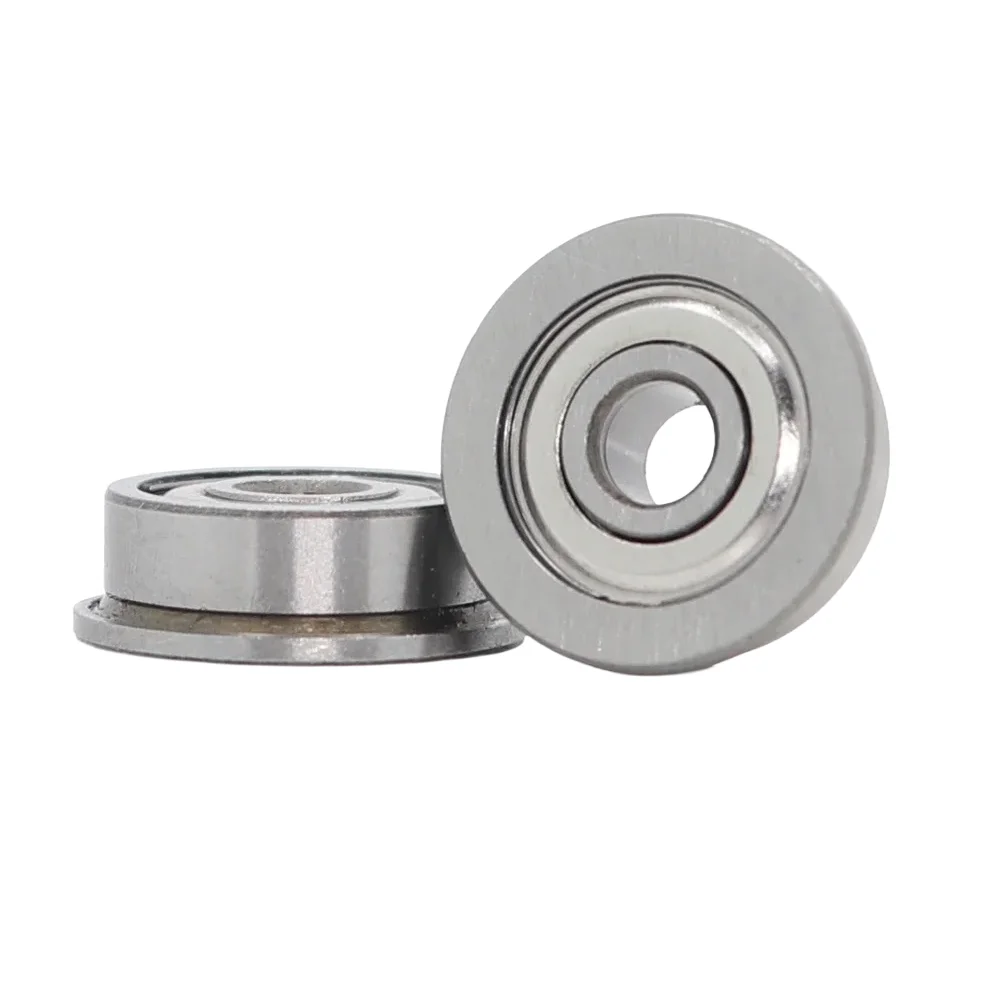

F604ZZ Flanged Ball Bearing

F604ZZ Flanged Ball Bearing is a compact, precision deep groove bearing with a flanged outer ring and double metal shields. It is commonly used in mechanical assemblies where precise motion and axial location are required. The integrated flange eliminates the need for additional bearing housings, making it ideal for 3D printers, gearboxes, robotics, and stepper motor support applications.

Key Features:

• Integrated Flange: Allows easy mounting and axial positioning.
• Double Shielded: Protected against dust and light splashes.
• Low Noise Operation: Ensures smooth, quiet rotation.
• Miniature Size: Suitable for compact mechanical designs.
• High-Speed Capability: Designed for fast rotation under load.

Technical Specifications:

• Model: F604ZZ
• Inner Diameter (ID): 4mm
• Outer Diameter (OD): 12mm
• Width: 4mm
• Flange Diameter: 13.8mm (approx.)
• Material: Chrome Steel (GCr15)
• Shield Type: Double metal shields (ZZ)
• Maximum Speed: Up to 32,000 RPM (greased)
• Static Load Rating: ~330N
• Dynamic Load Rating: ~780N

Mechanical Specifications:

• Bore Tolerance: Standard ISO h7
• Mounting Type: Flanged for easy axial support
• Construction: Single row deep groove
• Lubrication: Pre-lubricated with grease
• Temperature Range: -20°C to 120°C

Mounting Options:

• Face Mounting: Flange provides mechanical stop for accurate positioning.
• Press Fit: Outer ring can be press-fitted into housings.

Applications:

• 3D Printers: For smooth linear and rotary motion control.
• Robotics: Used in joints and gear reduction mechanisms.
• Electric Motors: Supports shafts in compact motor assemblies.
• RC Models: Ideal for small wheels or propeller shafts.
• CNC Machines: Precision support for leadscrew or axis movement.

Equivalent Models:

• MF104ZZ: Same internal size but made of stainless steel
• F604: Open version without shields
• R-1440ZZ: Alternate shielded bearing with slightly different dimensions

Package Includes:

• 1 x F604ZZ Flanged Ball Bearing
