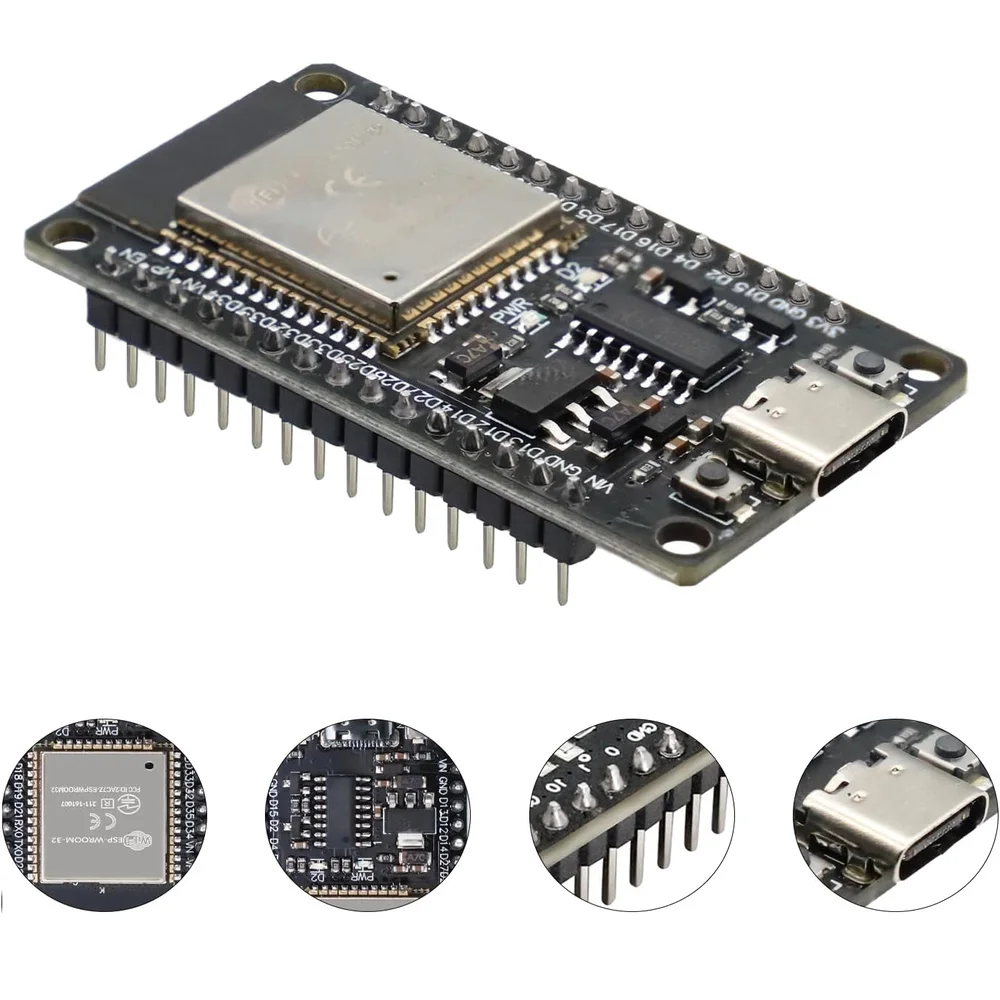

ESP32 Development Board TYPE-C CH340C WiFi+Bluetooth

ESP32 Development Board TYPE-C CH340C WiFi+Bluetooth is a versatile, low-power development board that integrates Wi-Fi and Bluetooth connectivity, powered by the ESP32 SoC. This version uses the CH340C USB-to-Serial converter and features a modern USB Type-C interface for reliable and reversible connections. It is ideal for IoT, smart home, wireless sensor, and automation applications.

Key Features:

• ESP32 Dual Core MCU: 32-bit LX6 dual-core processor running up to 240MHz.
• Wi-Fi and Bluetooth: Integrated 2.4GHz Wi-Fi 802.11 b/g/n and Bluetooth v4.2 (Classic + BLE).
• CH340C USB Driver: Reliable and widely supported USB-to-Serial converter.
• Type-C Interface: Reversible USB Type-C port for easy power and programming.
• 30-Pin Layout: Breakout for GPIOs, ADCs, SPI, I2C, UART, PWM, and more.

Technical Specifications:

• Processor: Xtensa® 32-bit LX6 dual-core processor
• Operating Voltage: 3.3V logic (5V input via USB Type-C)
• Flash Memory: 4MB
• Wi-Fi Protocols: 802.11 b/g/n
• Bluetooth: Classic Bluetooth + BLE 4.2
• USB Interface: Type-C with onboard CH340C chip
• GPIOs: 30 pins total (including ADC, DAC, SPI, I2C, UART, PWM)

Mechanical Specifications:

• Dimensions: Approx. 58mm x 25mm x 10mm
• Mounting: Breadboard-compatible headers (soldered)
• Pin Pitch: Standard 2.54mm

Pinout and Wiring:

• Power Pins: 5V, 3.3V, GND
• GPIO: Includes digital I/O, ADC (12-bit), DAC, touch pins
• Communication: UART (TX/RX), SPI, I2C
• Boot/Reset: Onboard BOOT and EN (RESET) buttons

Datasheet and Documentation:

• ESP32 Datasheet, CH340C Driver, and Arduino Example Codes (ZIP)

Applications:

• IoT Projects: Ideal for home automation, sensor monitoring, and smart devices.
• Wireless Communication: Wi-Fi or Bluetooth-based data transmission.
• Embedded Systems Development: Supports ESP-IDF, Arduino, MicroPython, PlatformIO.
• Prototyping: Easily test ideas using breadboard-compatible form factor.

Equivalent Models:

• ESP32 DEVKIT V1: Similar board with Micro USB port
• NodeMCU-32S: ESP32 development board with CP2102 USB chip
• Wemos D1 R32: Arduino UNO form factor ESP32 board

Package Includes:

• 1 x ESP32 Development Board TYPE-C CH340C WiFi+Bluetooth (30 Pin)
