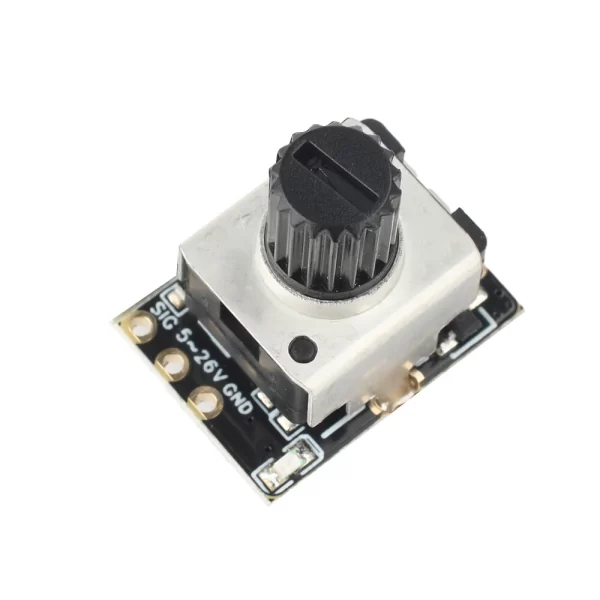

DC2.6-26V Wide-Range DC ESC Governor for Small Aeromodels

The product adopts 12-bit ADC resolution microcontroller (non-555 chip), super silky smooth linear speed regulation without steps. Suitable for controlling ESC, speed regulation of brushless motor, can be used to modify violent fan.

Key Features:

• • • High-precision speed regulation: adopts 12-bit ADC resolution microcontroller to achieve ultra-smooth linear speed regulation
    • Wide voltage input: support DC 2.6-26V input, applicable to a variety of power supply environment
    • Simple operation design: compact size of only 18*16*17mm, easy to carry and install
    • Stable output frequency: Fixed 50Hz output frequency ensures smooth and reliable motor operation
    • Wide range of applications: suitable for brushless fans, aeromodelling motors, etc., to meet the needs of DIY

Technical Specifications:

• • Product name: mini speed controller
  • Input voltage: DC 2.6-26V
  • Output frequency: 50Hz
  • Regulating range: 975us~1.95ms (duty cycle)
  • Product size: 18*16*17mm

Package Includes:

• • 1 x DC2.6-26V Mini ESC Tester Brushless Fan Simple Aeromodelling Motor PWM Governor
