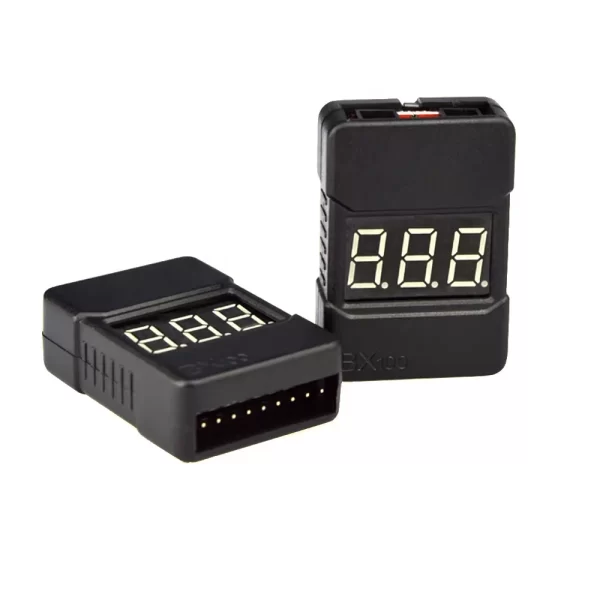

BX100 1-8S Lipo Battery Voltage Tester

BX100 1-8S Lipo Battery Voltage Tester is an essential safety and monitoring device for anyone operating Li-Po, Li-Fe, or Li-Ion battery packs. This compact and lightweight unit provides immediate, accurate readings of your battery’s overall voltage and the individual cell voltages, offering crucial insight into the pack’s health. By quickly identifying any unbalanced or failing cells, the BX100 helps prevent over-discharging, which can permanently damage expensive batteries. A key safety feature is the integrated low-voltage alarm, which pilots and drivers can configure to sound a loud buzzer when any cell drops below a user-set threshold. Simply plug the balance connector into the tester to ensure your power source is ready for optimal performance and a long life.

Key Features:

• Versatile Compatibility: Accurately measures Li-Po (Lithium Polymer), Li-Fe (Lithium Iron), and Li-Ion (Lithium Ion) batteries from 1 cell (1S) up to 8 cells (8S).
• Cell-by-Cell Monitoring: Displays the voltage for each individual cell in the pack, allowing you to check for balance and diagnose problems quickly.
• Integrated Low-Voltage Alarm: Features a loud, audible buzzer that alerts the user when any single cell falls below a configurable safe voltage level.
• Overall Voltage Display: Shows the total voltage of the battery pack, in addition to the individual cell readings.
• Clear LCD Screen: A bright digital display ensures you can easily read the voltage values even in bright outdoor conditions.
• Reverse Polarity Protection: Built-in circuitry protects the tester from damage if you accidentally connect the balance lead incorrectly.

Technical Specifications:

• Supported Battery Types: Li-Po / Li-Fe / Li-Ion
• Cell Count Range: 1S – 8S (Series)
• Voltage Display Resolution: 0.01V
• Unit Voltage Display Range: 0.5V – 4.5V
• Total Voltage Display Range: 0.5V – 36V
• Alarm Set Value Range: OFF – 2.7V – 3.8V
• Current Drain: Approximately 15mA

Mechanical Specifications:

• Display: Segment LCD with blue backlight or black text.
• Connector Type: Standard JST-XH balance plug port.
• Housing: Durable plastic shell.
• User Interface: One push-button for cycling display modes and setting the alarm voltage.

Dimensions:

• Length: ~40 mm
• Width: ~25 mm
• Thickness: ~11 mm

Pinout and Wiring:

• Input Connector: JST-XH Balance Port (2-pin to 9-pin compatible).
• Wiring: Simply plug the battery’s balance lead into the tester’s JST-XH port. The tester draws power directly from the battery pack via this connector.
• Ground Reference: The tester uses the negative pin of the balance connector (Pin 1, typically marked as B-) as its reference ground.

Datasheet Reference:

• Download User Manual and Specifications

Commonly Used in:

• Remote Control (RC) Hobbies: Essential tool for Quadcopters, RC Airplanes, Helicopters, and RC Cars.
• Electric Skateboards/Bikes: Used for quick diagnosis of battery pack health and charging status.
• Custom Battery Builds: Monitoring and testing custom-made Lithium battery packs.

Applications:

• Pre-Flight/Drive Check: Verify cell balance and voltage before operating RC models to ensure peak performance and safety.
• In-Field Monitoring: Use the audible alarm function on your model to signal when the battery is near depletion, preventing deep discharge.
• Charging Verification: Check individual cell voltages after charging to confirm the charger balanced the pack correctly.

Equivalent Models:

• CellMeter 7: A popular multi-function tester that often includes discharge and servo testing features.
• BMS (Battery Management System) Indicators: Integrated voltage displays found on higher-end battery packs.

Package Includes:

• 1 x BX100 1-8S Lipo Battery Voltage Tester
