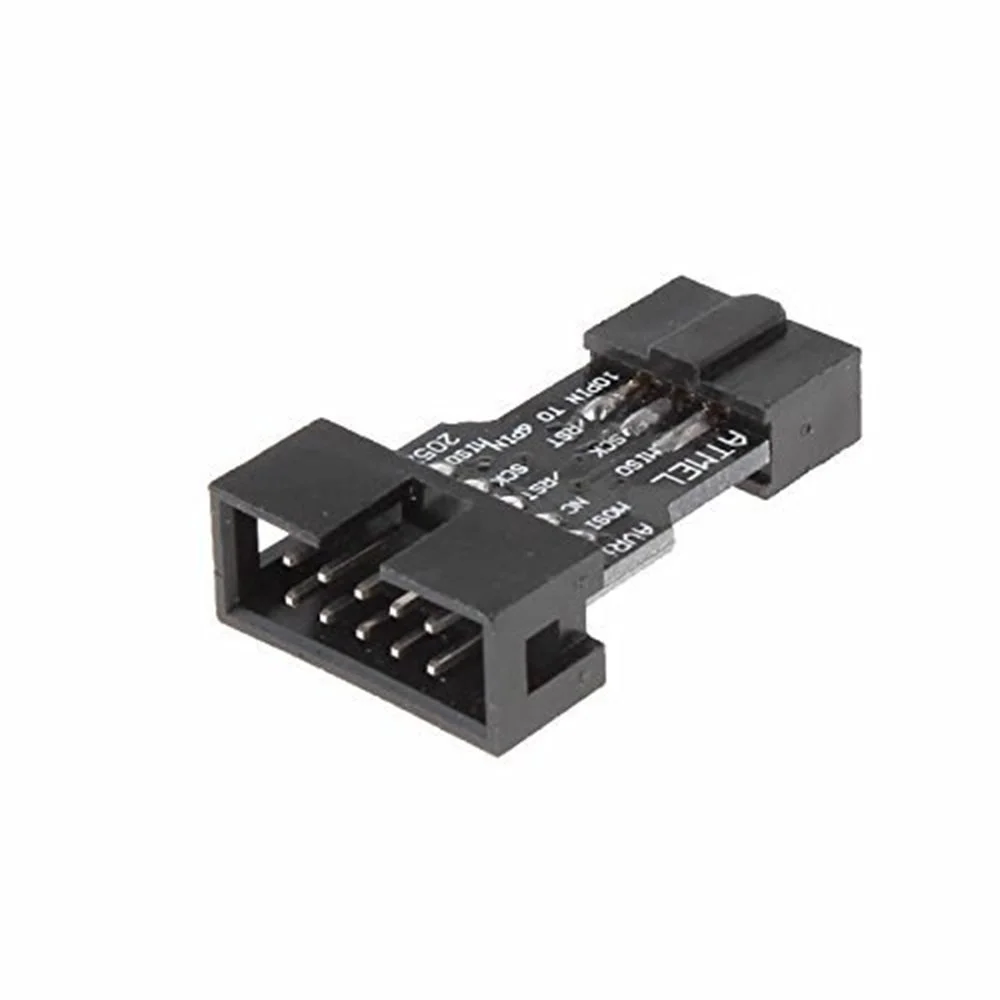

AVR ISP 10 Pin to 6 Pin Adapter Board

AVR ISP 10 Pin to 6 Pin Adapter Board is a compact, ready-to-use module designed to convert a standard 10-pin ISP header to a 6-pin header. This allows easy compatibility between AVR programmers like USBasp, AVRISP mkII, and microcontroller development boards using a 6-pin ISP interface. It ensures secure and reliable in-system programming for ATmega, ATTiny, and other AVR chips.

Key Features:

• Converts 10-pin ISP header to 6-pin standard
• Supports AVR microcontrollers via in-system programming
• Compatible with USBasp, AVRISP mkII, and other standard programmers
• Plug-and-play interface with precise pin alignment
• Reliable gold-plated header pins for secure connection

Technical Specifications:

• Input: 10-pin AVR ISP standard header (2×5)
• Output: 6-pin AVR ISP standard header (2×3)
• Pin Pitch: 2.54mm (0.1″) standard
• Operating Voltage: 3.3V to 5V
• PCB Material: FR4-grade fiberglass

Mechanical Specifications:

• PCB Thickness: 1.6mm
• Connector Type: Male header pins
• Connector Material: Brass, tin/gold-plated
• Color: Blue or green (based on batch)

Dimensions:

• Board Length: Approx. 25mm
• Board Width: Approx. 15mm
• Header Pin Height: 11mm (standard)

Mounting Options:

• Direct plug-in to breadboards or ISP sockets
• Can be soldered to a larger programmer assembly
• No screws or enclosure required (open-frame design)

Schematic Diagram, Connection, Wiring and Pinout:

• Pin 1: MISO – Master In Slave Out
• Pin 2: VCC – Target voltage (3.3V or 5V)
• Pin 3: SCK – Serial Clock
• Pin 4: MOSI – Master Out Slave In
• Pin 5: RESET – MCU Reset
• Pin 6: GND – Ground

Datasheet/User Manual:

• Download AVR ISP 10 to 6 Pin Adapter Board datasheet (PDF)
• Refer to Atmel AVR ISP Programming Guidelines for usage

Applications:

• Programming of AVR microcontrollers (ATmega, ATTiny series)
• Bootloader flashing for Arduino boards using ISP
• Firmware updates for embedded AVR-based projects
• Prototyping and development environments

Equivalent:

• SparkFun AVR ISP Adapter
• Adafruit AVR 10-pin to 6-pin converter
• Generic AVR ISP breakout boards

Package Includes:

• 1 x AVR ISP 10 Pin to 6 Pin Adapter Board
