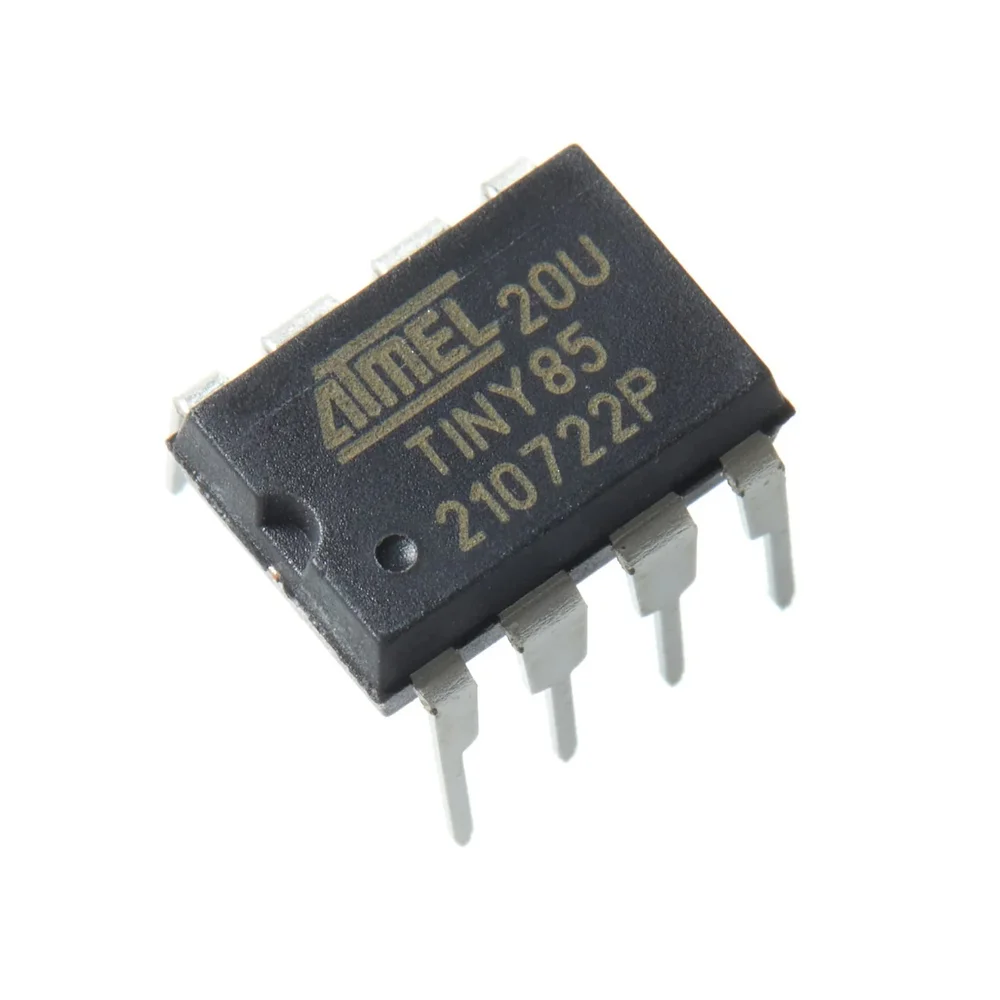

ATtiny85 8-Pin AVR DIP Microcontroller IC

185.00
You save

In stock

8-bit Microcontrollers – MCU 8kB Flash 0.512kB EEPROM 6 I/O Pins

Category: Brand:

Frequently Bought Together

ATtiny85 8-Pin AVR DIP Microcontroller IC is a high-performance, low-power 8-bit microcontroller in a compact DIP-8 package. Part of Atmel’s AVR family, it delivers impressive capabilities in minimal footprint, making it ideal for space-constrained embedded applications, DIY projects, and educational purposes.

Key Features:
    • 8-Pin DIP Package: Breadboard-friendly through-hole design
    • Advanced RISC Architecture: 120+ instructions, most single-cycle execution
    • High Endurance Memory: 10,000 write/erase cycles
    • Low Power Operation: 0.1μA in power-down mode
    • Versatile I/O: 6 programmable I/O lines with 20mA sink/source
Technical Specifications:
    • CPU Speed: 0-20MHz (1MHz default internal oscillator)
    • Flash Memory: 8KB (4K x 16) for program storage
    • SRAM: 512 bytes
    • EEPROM: 512 bytes
    • Operating Voltage: 1.8-5.5V DC
    • Digital I/O Pins: 6 (PB0-PB5)
    • ADC Channels: 4 (10-bit resolution)
    • PWM Channels: 3 (8-bit)
    • Temperature Range: -40°C to +85°C
Pin Configuration (DIP-8):
    • Pin 1 (PB5/RESET): Reset input (active low) or I/O
    • Pin 2 (PB3/ADC3): I/O or analog input
    • Pin 3 (PB4/ADC2): I/O or analog input
    • Pin 4 (GND): Ground
    • Pin 5 (PB0/MOSI): I/O or SPI data input
    • Pin 6 (PB1/MISO): I/O or SPI data output
    • Pin 7 (PB2/SCK): I/O or SPI clock
    • Pin 8 (VCC): Power supply (1.8-5.5V)
Programming Options:
    • ISP Programming: Using USBasp or Arduino as ISP
    • Arduino IDE: Via ATTinyCore board package
    • PlatformIO: Supported with proper configuration
    • AVRDUDE: Command-line programming tool
Development Setup:
    • 1. Install Arduino IDE with ATTinyCore
    • 2. Connect programmer (USBasp/ArduinoISP)
    • 3. Select board: “ATtiny25/45/85”
    • 4. Choose processor: “ATtiny85”
    • 5. Set clock speed (1/8/16/20MHz)
    • 6. Select programmer type
    • 7. Upload “Burn Bootloader” first
Applications:
    • LED Projects: PWM dimming, NeoPixel controllers
    • Sensor Nodes: Temperature, light, motion sensing
    • Simple Automation: Timers, switches, relays
    • Educational Kits: Learning embedded programming
    • Wearable Electronics: Low-power wearable devices
Equivalent ICs:
Datasheet:
Keywords:
    • ATtiny85 Microcontroller
    • 8-Pin AVR DIP IC
    • ATtiny85 DIP-8
    • AVR Microcontroller
    • 8KB Flash MCU
Package Includes:
    • 1 x ATtiny85 8-Pin DIP Microcontroller IC

Additional information

Weight 2 g
