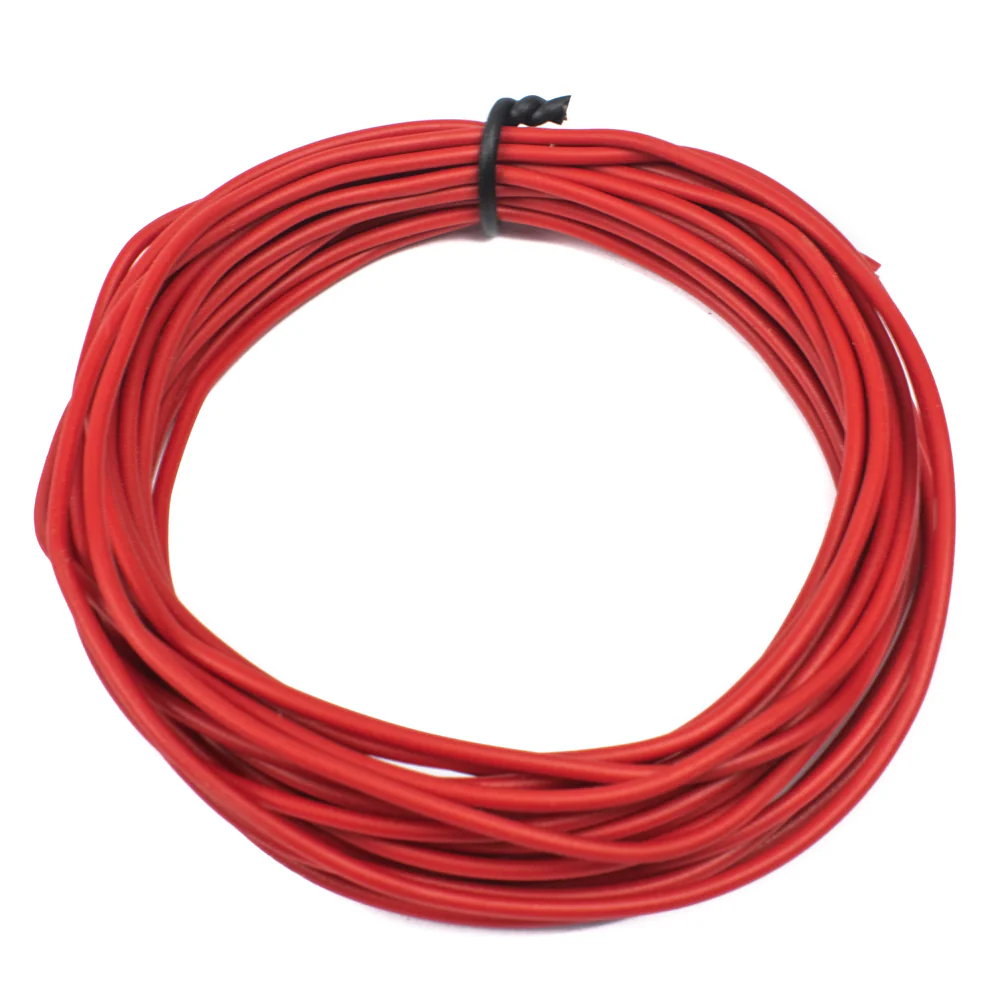

7/38 SWG Tinned Copper Flexible Hook up Wire – Red

PVC hook-up wire is mainly used for the general purpose of the internal wiring of electronic and electrical equipment. Its characteristics include tinned copper conductors, Polyvinyl Chloride (PVC) insulation, and a 300-volt rating. This makes the UL1007 wire suitable for applications in temperatures ranging from 80°C to 105°C.

• • No. of Strands SWG 7/38 or 7/0.0060inch
  • Cross Section Area 0.127 sq. mm
  • Max. Conductor Resistance at 20 deg C – 152.7
  • Overall Diameter 1.25mm
  • Rating 300V UL1007
  • Outer Material: PVC
  • Finish: Tinned plated copper strands
  • Current: 1 Amp @ 250V AC

It is important to choose the correct size cable when connecting to the mains. The wire has to be the correct size so that it can cope with the power demands of the device. The size stated for cables is given in mm2 and this measurement is actually the cross sectional area of the wire inside. The larger that area the higher the current it can carry.

If a cable is used which is too small for the amount of current passing through, it becomes dangerous. This results in the wire overheating and causing a serious safety risk. The table below gives typical values of cable size available plus corresponding current rating and maximum power ratings.

Package Includes:

• 1 meter x 7/38 SWG Tinned Copper Flexible Hook up Wire – Red
