5mm WS2811 Addressable NeoPixel RGB LED

5mm WS2811 Addressable NeoPixel RGB LED delivers bright, individually controllable colors in a standard 5mm LED package. It integrates a WS2811 driver IC inside the LED, enabling full RGB color mixing through a single data line. Makers, hobbyists, and engineers use it widely for decorative lighting, pixel art displays, and embedded projects.

Key Features:

• Individually Addressable: Control each LED’s color and brightness independently using WS2811 protocol.
• Full RGB Color: Mix red, green, and blue to produce millions of colors.
• Built-in Driver: Integrated WS2811 IC for direct microcontroller control.
• Single Data Line: Daisy-chain multiple LEDs using only one control pin.
• High Brightness: Efficient LED chip delivers vivid illumination.

Technical Specifications:

• Operating Voltage: 5V DC
• LED Type: 5mm round RGB LED with WS2811 driver
• Protocol: WS2811 single-wire serial communication
• Color Depth: 24-bit (8-bit per channel)
• Current per LED: ~60mA max (full white)
• Refresh Rate: Up to 400Hz PWM

Mechanical Specifications:

• Lens Type: Clear, 5mm round epoxy package
• Viewing Angle: ~120°
• Encapsulation: Epoxy resin for durability
• Mounting: Through-hole PCB mounting

Dimensions:

• LED Diameter: 5mm
• Lead Length: ~25mm
• Lead Pitch: Standard 2.54mm

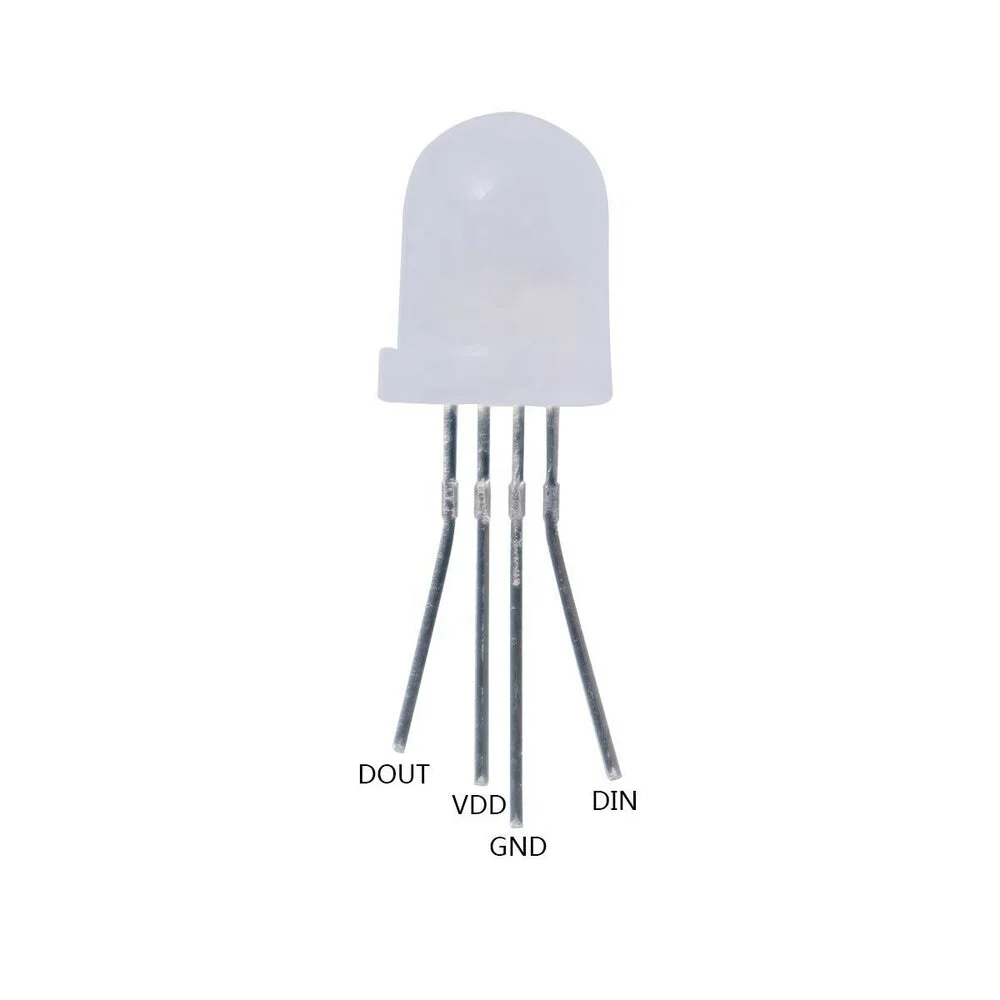

Pinout and Wiring:

• DIN: Data input from microcontroller or previous LED
• GND (-): Ground connection
• VCC (+): 5V power supply
• DOUT: Data output to next LED in chain

Datasheet Reference:

• WS2811 5mm RGB LED datasheet

Applications:

• LED Displays: Create large, addressable RGB pixel displays.
• DIY Projects: Build custom light effects for Arduino or Raspberry Pi projects.
• Wearable Electronics: Add colorful lighting to costumes and stage props.
• Decorative Lighting: Use for festivals, gaming setups, and home decor.

Equivalent Models:

• F5 WS2812B: Similar RGB LED with integrated controller
• SK6812: High-efficiency RGB LED with comparable protocol
• APA106: Compatible addressable RGB LED variant

Package Includes:

• 1 x 5mm WS2811 Addressable NeoPixel RGB LED
