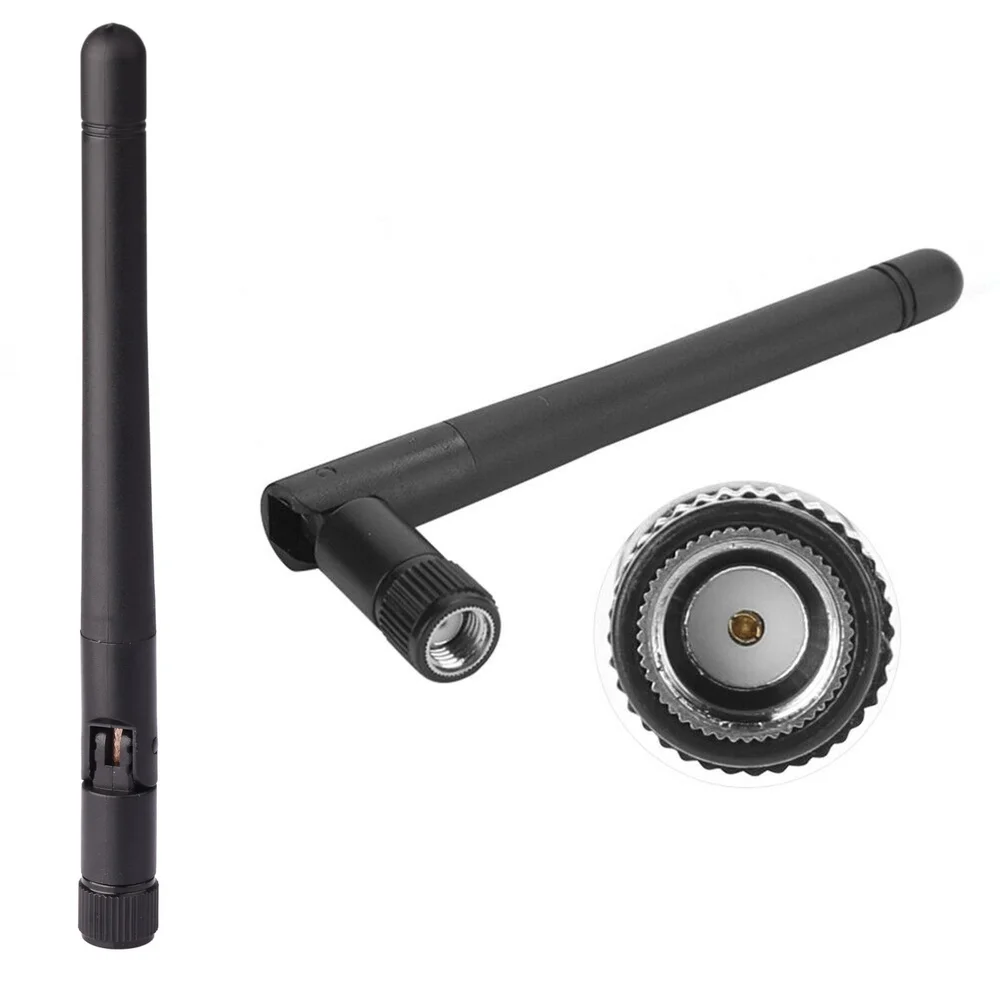

5.8GHz 3dBi Omni WIFI Antenna aerial RP-SMA Male for wireless router

5.8GHz 3dBi Omni WIFI Antenna aerial RP-SMA Male provides a reliable boost to your wireless signal, making it an essential upgrade for devices operating in the 5.8GHz frequency band. This versatile antenna delivers an omnidirectional signal pattern, ensuring a consistent and stable connection in all directions without the need for precise alignment. Engineers and enthusiasts utilize it to extend the range and improve the signal stability of wireless routers, FPV drone systems, and other 5.8GHz communication equipment that use a standard RP-SMA connector.

Key Features:

• Omnidirectional Radiation: The antenna broadcasts and receives signals in a full 360-degree horizontal pattern, eliminating dead spots and providing uniform coverage.
• 3dBi Gain: Offers a moderate signal boost, effectively increasing both the transmission and reception range of your wireless device.
• 5.8GHz Frequency Band: Specifically designed to operate within the less-congested 5.8GHz band, delivering faster speeds and less interference.
• RP-SMA Male Connector: Features a widely compatible Reverse Polarity SMA connector, making it a simple plug-and-play upgrade for most wireless devices.
• Lightweight and Compact: Its small form factor and light weight make it ideal for integration into a wide range of devices, including drones and remote controls.

Technical Specifications:

• Frequency Range: 5.725 GHz – 5.850 GHz
• Gain: 3dBi
• Polarization: Vertical
• Standing Wave Ratio (VSWR): ≤ 1.5
• Input Impedance: 50 Ω
• Connector Type: RP-SMA Male (Reverse Polarity SMA)

Mechanical Specifications:

• Antenna Type: Omni Whip Antenna
• Shell Material: ABS plastic
• Connector: Gold-plated brass
• Assembly: Designed for direct screw-on connection

Dimensions:

• Total Length: ~110 mm
• Antenna Diameter: ~8 mm
• Connector Diameter: ~7.9 mm

Connector and Installation:

• Connector: RP-SMA Male (pin in the center of the antenna, threads on the inside)
• Installation: Simply unscrew the existing antenna from your device and carefully screw on this new RP-SMA Male antenna until snug. Avoid overtightening.
• Wiring Note: This is a passive antenna and does not require any additional wiring or power supply.

Datasheet Reference:

• Consult the manufacturer’s specifications for complete details, as antenna performance can vary based on design and production batch.

Applications:

• Wireless Routers: Replace stock antennas to improve Wi-Fi signal coverage throughout a home or office.
• FPV Drones: Upgrade the antennas on FPV transmitters and receivers for a more stable video feed and better control range.
• Wireless IP Cameras: Enhance the signal for security cameras, ensuring a more reliable connection.
• Remote Controls and IoT Devices: Use to boost the signal of any device operating in the 5.8GHz band with an RP-SMA female port.

Equivalent Models:

• 5dBi or 8dBi Omni Antennas: Offer higher gain for longer-range applications but can have a slightly flatter radiation pattern.
• SMA Male Antennas: Physically similar but with a standard SMA connector (pin in the center of the device port).

Package Includes:

• 1 x 5.8GHz 3dBi Omni WIFI Antenna aerial RP-SMA Male for wireless router
