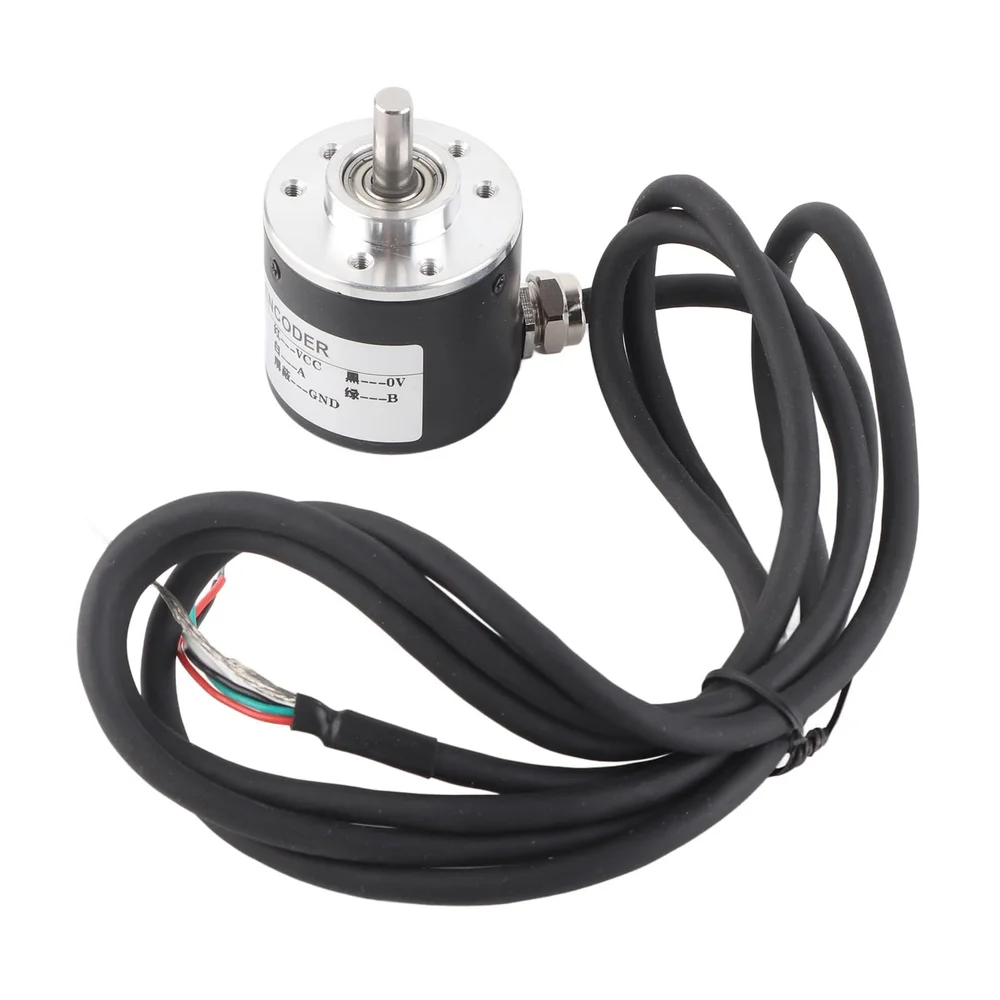

5-24V 600P/R Pulse Incremental Optical Rotary Encoder is a precision device used for detecting angular position and speed in automation systems, CNC machines, robotics, and motor feedback control. With 600 pulses per revolution (P/R), it provides accurate pulse signals corresponding to rotational movement. It operates on a wide voltage range and delivers reliable quadrature output.
Key Features:
- High Resolution: 600 pulses per revolution for accurate angular position feedback.
- Wide Operating Voltage: Supports 5V to 24V DC input.
- Incremental Output: Quadrature A/B phase output for direction detection.
- Durable Build: Metal housing ensures mechanical strength and stability.
- Easy Mounting: Includes a coupling and mounting bracket for hassle-free installation.
Technical Specifications:
- Model: E6B2-CWZ6C compatible
- Working Voltage: DC 5V to 24V
- Output Type: NPN open collector (A, B, Z phases)
- Resolution: 600 P/R (Pulses per Revolution)
- Response Frequency: 0 to 100kHz
- Shaft Diameter: 6mm
- Output Shaft Length: Approx. 13mm
- Output Cable: 5-core, 1.5m length
Mechanical Specifications:
- Body Material: Aluminum alloy
- Shaft Type: Solid shaft
- Mounting Hole: Compatible with standard brackets
- Connector: 5-wire bare cable (A, B, Z, VCC, GND)
- Weight: Approx. 120g
Pinout and Wiring:
- Red: VCC (5-24V)
- Black: GND
- Green: A phase
- White: B phase
- Yellow: Z phase (optional zero pulse)
Datasheet and Documentation:
- Download Incremental Rotary Encoder Datasheet (PDF)
Applications:
- CNC Machines: Provides feedback for positioning systems.
- 3D Printers: Used for motor rotation feedback and control.
- Robotics: Detects joint movement and position in robotic arms.
- Industrial Automation: Ideal for conveyor belt and actuator control.
- Rotary Position Sensing: Detects angular position in encoders or dials.
Equivalent Models:
- E6B2-CWZ6C: Omron industrial-grade incremental encoder
- HEDM-5500: Avago high-resolution incremental encoder
- TRD-N600-RZ: Delta encoder with NPN output and 600PPR
Package Includes:
- 1 x 5-24V 600P/R Incremental Optical Rotary Encoder
Additional information
Weight | 120 g |
---|
