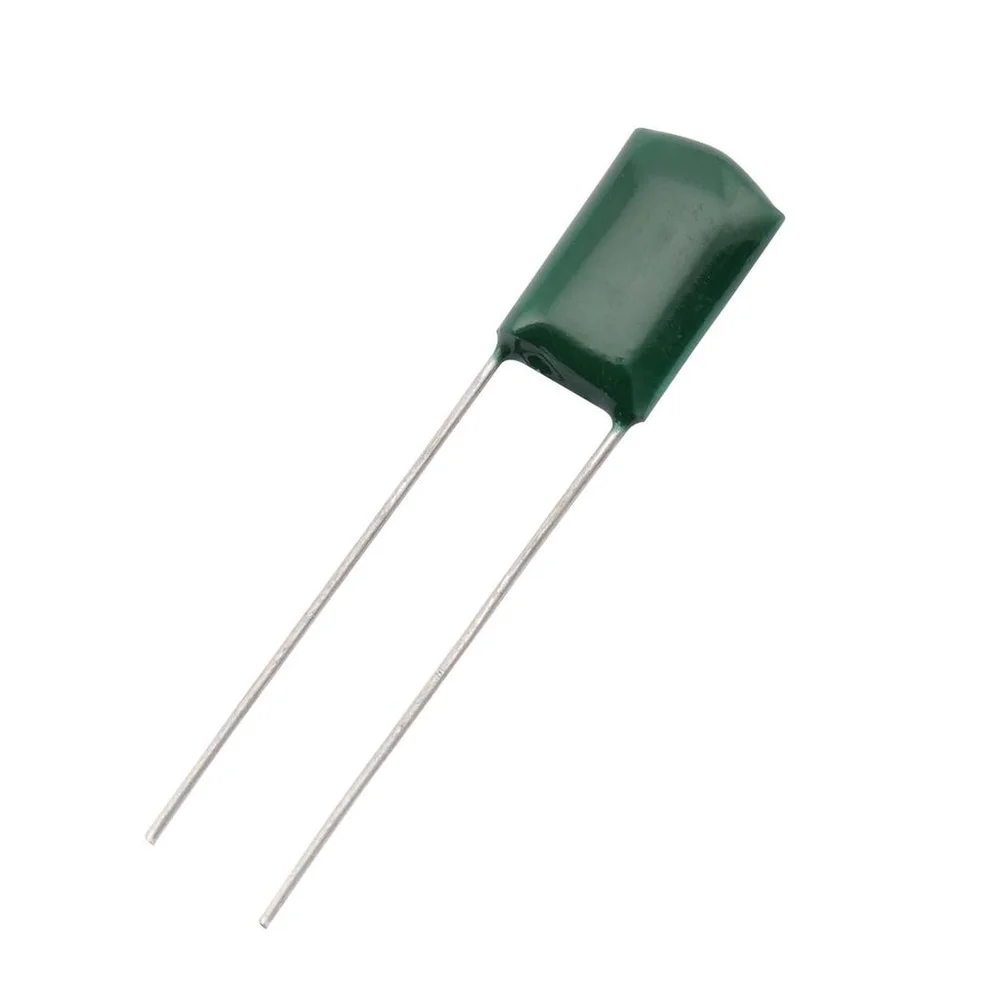

2A471J 470pF 100V Mylar Polyester Film Capacitor

The 2A471J is a 470pF 100V Mylar Polyester Film Capacitor ideal for signal coupling, filtering, timing, and general-purpose applications. Known for its stable capacitance, low loss, and reliability over a wide temperature range, this capacitor is commonly used in analog circuits, amplifiers, audio applications, and timing networks.

Key Features of 2A471J 470pF 100V Mylar Polyester Film Capacitor:

• High Stability: Excellent capacitance stability over temperature and frequency.
• Low Dielectric Absorption: Ensures accurate signal processing in timing circuits.
• Durable Construction: Polyester film and aluminum foil construction for reliable performance.
• Compact Package: Axial or radial form for space-efficient PCB mounting.
• Wide Operating Temperature Range: Typically -40°C to +85°C or better.

Technical Specifications of 2A471J 470pF 100V Mylar Polyester Film Capacitor:

• Capacitance: 470pF
• Rated Voltage: 100V DC
• Tolerance: ±5% (J code)
• Dielectric Material: Mylar (Polyester Film)
• Mounting Type: Radial through-hole
• Lead Spacing: Typically 5mm (check datasheet for exact value)

Mechanical Specifications of 2A471J 470pF 100V Mylar Polyester Film Capacitor:

• Package Type: Radial leaded
• Body Material: Flame-retardant epoxy resin coating
• Lead Material: Tinned copper wire
• Polarity: Non-polarized

Dimensions:

• Length: Approx. 7.2mm
• Width: Approx. 2.5mm
• Height: Approx. 6.0mm
• Lead Pitch: 5.0mm (may vary slightly by manufacturer)

Mounting Options:

• Through-Hole Mount: Suitable for soldering on PCBs.
• Breadboard Friendly: Can be used in prototyping circuits and development boards.

Schematic Diagram, Connection, Wiring and Pinout of 2A471J Capacitor:

• Connection: Non-polarized – either lead can be connected to signal or ground.
• Wiring: Insert into PCB with correct pitch and solder from bottom side.
• Pinout: 2 leads – no polarity requirement.

Datasheet of 2A471J 470pF 100V Mylar Polyester Film Capacitor:

• Download 2A471J Datasheet (PDF)

Applications of 2A471J 470pF 100V Mylar Polyester Film Capacitor:

• Signal Coupling: Used in analog signal paths for AC coupling.
• Filter Networks: EMI/RFI filters and low-pass or high-pass filters.
• Timing Circuits: In RC timing configurations and oscillators.
• Audio Applications: Common in crossover networks and preamps.
• General Purpose: In low voltage analog and digital circuits.

Equivalent of 2A471J 470pF 100V Mylar Polyester Film Capacitor:

• Panasonic ECQ-V1H471JL: Similar polyester capacitor with 470pF, 100V rating
• WIMA MKS02 470pF 100V: High-quality alternative with polyester dielectric
• KEMET R82DC2470Z100K: General-purpose film capacitor

Package Includes:

• 1 x 2A471J 470pF 100V Mylar Polyester Film Capacitor
