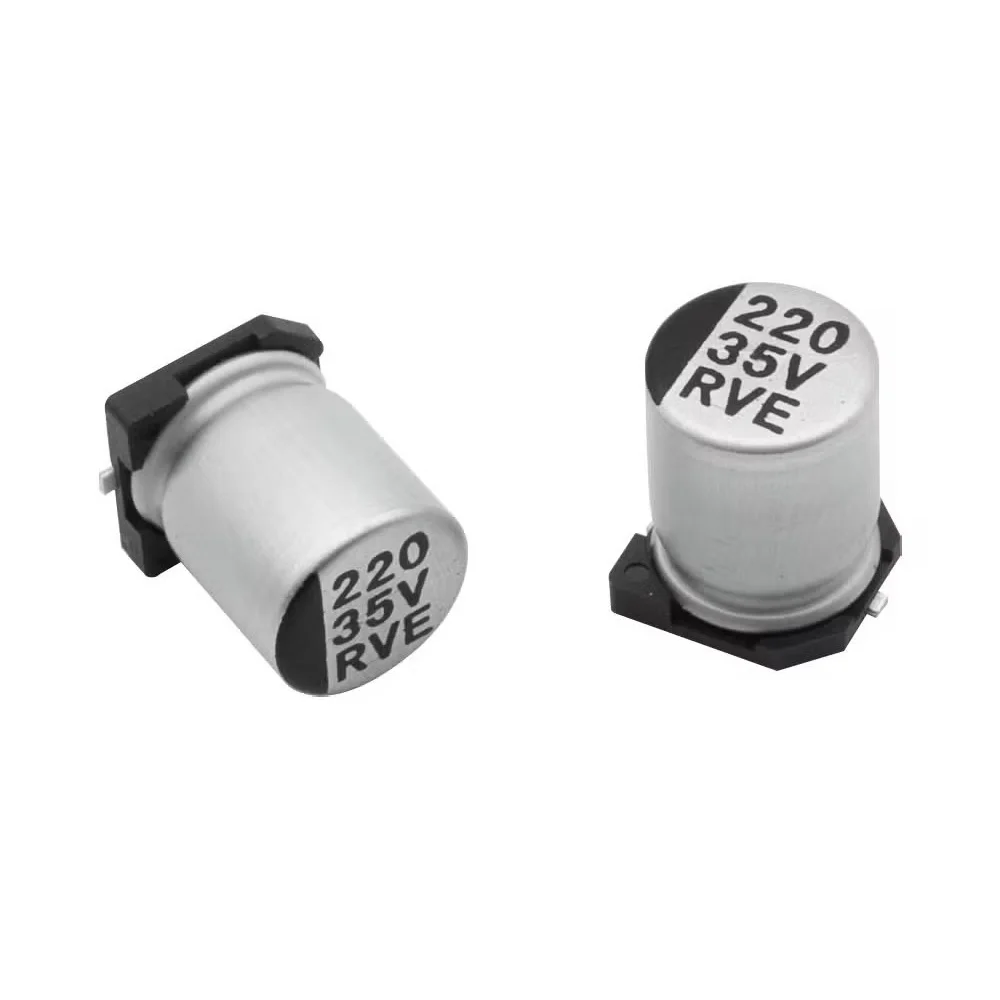

220uF 35V Surface Mount Electrolytic Capacitor

5.50
You save

In stock

SKU: IFT00151 Category: Brand:

The 220uF 35V Surface Mount Electrolytic Capacitor is a compact and efficient capacitor ideal for power supply filtering, decoupling, and bulk energy storage in space-constrained electronic devices. Its surface mount design ensures compatibility with automated PCB assembly and stable performance in demanding circuits. With a voltage rating of 35V and a capacitance of 220 microfarads, it suits a wide range of power electronics and industrial control boards.

Key Features of 220uF 35V Surface Mount Electrolytic Capacitor:
  • High Capacitance: 220 microfarads suitable for energy storage and smoothing.
  • Voltage Rating: Handles up to 35V DC for compatibility with various power rails.
  • Surface Mount Package: Compact and ideal for automated SMT placement.
  • Temperature Stability: Operates efficiently across wide temperature ranges.
  • Long Life: Designed for extended service in continuous duty cycles.
Technical Specifications of 220uF 35V Surface Mount Electrolytic Capacitor:
  • Capacitance: 220µF ±20%
  • Rated Voltage: 35V DC
  • ESR (Equivalent Series Resistance): Low ESR for stable ripple handling
  • Leakage Current: ≤ 0.01CV or 3µA (whichever is greater)
  • Ripple Current: Up to 350mA RMS at 100kHz
  • Operating Temperature: -40°C to +105°C
Mechanical Specifications of 220uF 35V Surface Mount Electrolytic Capacitor:
  • Package Type: SMD (Surface Mount Device)
  • Polarity: Negative terminal marked with stripe on body
  • Terminals: Tin-plated for reflow soldering
  • Encapsulation: Aluminum can with rubber base seal
Dimensions:
  • Diameter: 10mm
  • Height: 10.2mm
  • Lead Spacing: Surface mount pads aligned underneath
Mounting Options:
  • Surface Mount: Compatible with standard SMT reflow soldering processes.
  • PCB Placement: Designed for compact layouts with polarity marking.
Schematic Diagram, Connection, Wiring and Pinout:
  • Connection: Positive terminal to Vcc; negative terminal to ground.
  • Wiring: Ensure correct polarity during placement to avoid capacitor damage.
  • Pinout: Two terminals – positive (center) and negative (striped side).
Datasheet of 220uF 35V Surface Mount Electrolytic Capacitor:
Applications of 220uF 35V Surface Mount Electrolytic Capacitor:
  • Power Supply Filtering: Smooths DC output in voltage regulator circuits.
  • Decoupling Capacitor: Eliminates voltage spikes and dips on power lines.
  • Consumer Electronics: Used in TVs, routers, and set-top boxes.
  • Industrial Control: Provides stability in control modules and logic boards.
  • LED Drivers: Improves performance in lighting power circuits.
Equivalent of 220uF 35V Surface Mount Electrolytic Capacitor:
Package Includes:
  • 1 x 220uF 35V Surface Mount Electrolytic Capacitor

Additional information

Weight 1 g
SIZE

8X10mm
