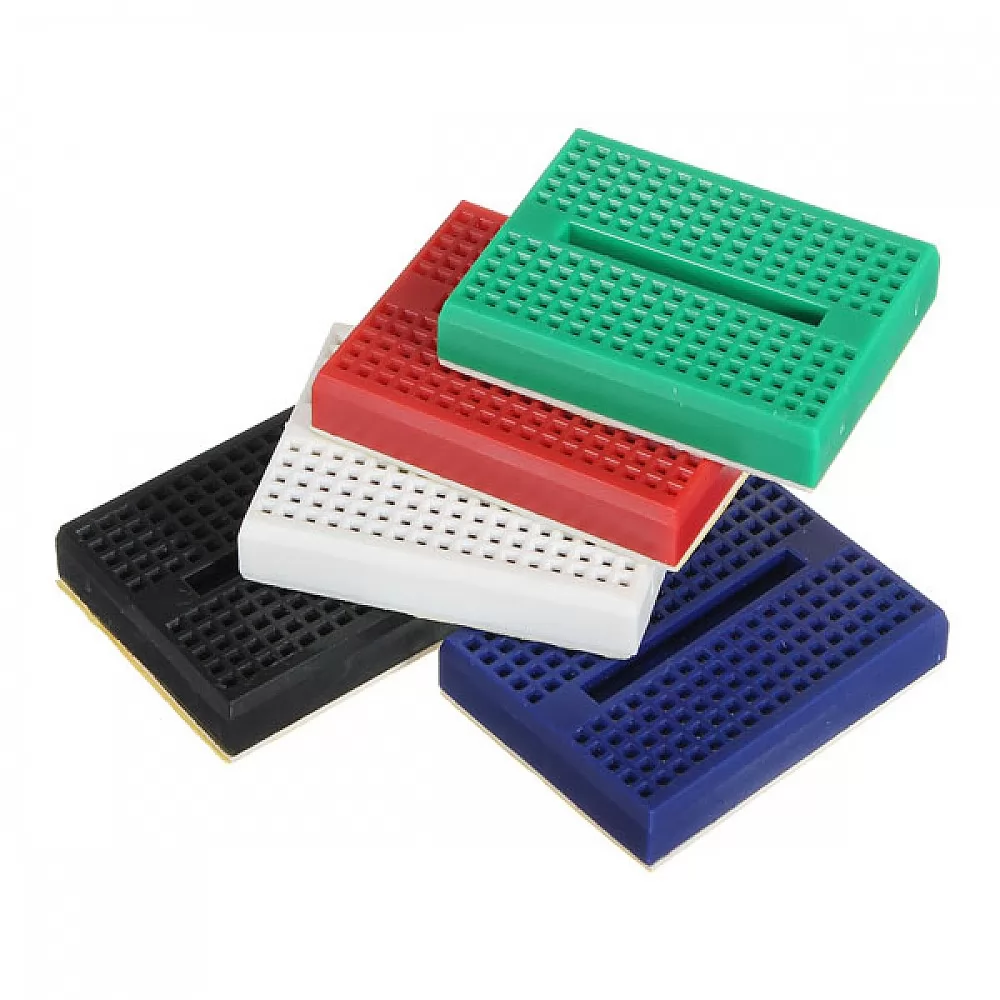

170 Points Mini Breadboard SYB-170

170 Points Mini Breadboard SYB-170 serves as an indispensable tool for rapid, solderless prototyping and temporary circuit design, particularly in compact electronics projects. This tiny breadboard offers 170 individual tie-points, providing ample space for small microcontroller circuits, sensor interfaces, and power regulation components. Consequently, engineers and hobbyists frequently choose the SYB-170 for its portability and ability to fit onto project cases or alongside development boards. It features a self-adhesive backing, therefore allowing you to securely mount the board onto any stable surface, minimizing clutter on your workbench. Use this mini breadboard to test concepts quickly and reliably before committing to a final PCB design.

Key Features:

• High Portability: The compact design, measuring just 4.5 cm x 3.4 cm, makes this breadboard ideal for small, mobile, or wearable electronic projects.
• 170 Tie-Points: Provides 170 connection points, sufficient for assembling small to medium-sized circuits, including simple microcontrollers or op-amp configurations.
• Interlocking Capability: You can easily snap multiple SYB-170 boards together, thereby expanding the prototyping area when your project requires more space.
• Self-Adhesive Backing: A strong foam tape backing allows for secure, non-slip mounting to development platforms, project enclosures, or shields.
• Durable Construction: The board utilizes high-quality ABS plastic and robust metal contacts, ensuring reliable, long-term reuse across numerous projects.

Technical Specifications:

• Total Tie-Points: 170 points (17 rows of 10 columns)
• Breadboard Type: Solderless Protoboard
• Contact Material: Phosphor Bronze/Nickel-Plated Clips
• Wire Size Compatibility: 20 to 29 AWG (≈ 0.3 mm to 0.8 mm diameter)
• Voltage/Current Rating: Typically rated for up to 36 V and less than 1 A
• Operating Temperature: −10°C to +80°C

Mechanical Specifications:

• Body Material: High-Impact ABS Plastic
• Grid Spacing: Standard 2.54 mm (0.1 inch)
• Color: Typically available in white or various colors (check specific listing)
• Mounting Feature: Pre-applied foam adhesive tape backing

Dimensions:

• Length: 45 mm (≈ 1.77 inches)
• Width: 34.5 mm (≈ 1.36 inches)
• Height: 8.5 mm (≈ 0.33 inches)
• Weight: ≈ 15 g (Extremely lightweight for portable use)

Pinout and Wiring:

• Connection Pattern: All 170 tie-points connect vertically in groups of 5 columns.
• Wire Insertion: Simply push component leads or jumper wires into the holes; the internal clips secure the connection.
• Power/Ground Rails: Note that this mini breadboard typically does not include separate, dedicated horizontal power rails (unlike larger boards), requiring the user to allocate terminal strips for power distribution.
• Component Placement: Insert ICs across the center break line, which electrically isolates the pins on each side.

Datasheet Reference:

• Download SYB-170 Mini Breadboard Reference Document

Commonly Used in:

• Development Board Prototyping: Ideal for attaching small breakout boards or sensors adjacent to Arduino, Raspberry Pi, or ESP modules.
• STEM/Educational Kits: Used extensively in teaching basic electronics due to its clear layout and ease of use.
• Compact Project Enclosures: Fits perfectly inside small plastic cases for finished, portable circuit prototypes.

Applications:

• Sensor Interfacing: Test and connect single or multiple analog/digital sensors to a microcontroller.
• Power Supply Decoupling: Use the points near ICs to test various capacitor and filtering configurations.
• Logic Circuit Testing: Assemble and verify small combinatorial or sequential logic circuits (e.g., gates, flip-flops).

Equivalent Models:

• BB170: A generic cross-reference for the same 170-point mini breadboard widely used in the industry.
• ZJ-170: Another common designation for this compact, interlocking solderless protoboard.
• MB-170: Often sold under this part number, offering identical dimensions and functionality.

Package Includes:

• 1 x 170 Points Mini Breadboard (SYB-170)
