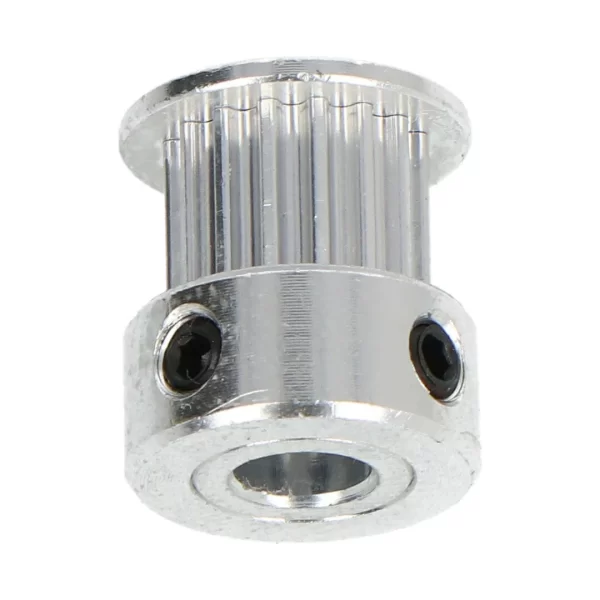

16 Teeth 5mm Bore GT2 Timing Pulley for 6mm Belt

16 Teeth 5mm Bore GT2 Timing Pulley for 6mm Belt delivers accurate motion transfer for 3D printers, CNC machines, and robotics. Makers and engineers use it with GT2 timing belts to ensure smooth rotation, reduced backlash, and precise positioning in linear motion systems.

Key Features:

• High Precision: GT2 profile ensures accurate motion with minimal backlash.
• Durable Construction: Machined from aluminum alloy for strength and long service life.
• 5mm Bore: Fits standard 5 mm motor shafts used in stepper and servo motors.
• 16 Teeth Design: Provides smooth power transmission with GT2 belts.
• Compatible Belt Width: Supports 6 mm wide GT2 timing belts.
• Corrosion Resistant: Anodized finish protects against wear and oxidation.

Technical Specifications:

• Teeth Count: 16 teeth
• Bore Diameter: 5 mm (shaft size)
• Pitch: 2 mm (GT2 standard)
• Compatible Belt Width: 6 mm
• Material: Aluminum alloy
• Surface Finish: Anodized for wear resistance

Mechanical Specifications:

• Mounting Style: Set-screw fastening to secure pulley on shaft
• Flange: Dual flanges prevent belt slip during operation
• Balance: Precision-machined for vibration-free performance
• Operating Environment: Suitable for mechanical and electromechanical assemblies

Dimensions:

• Outer Diameter: ~12.2 mm (approx.)
• Height: ~16 mm including flanges
• Bore Size: 5 mm
• Belt Width Compatibility: 6 mm

Pinout and Wiring:

• No electrical pins – mechanical component only.
• Secure pulley onto motor shaft using provided set screws.
• Align pulley teeth with GT2 belt for accurate motion transfer.

Datasheet Reference:

• Refer to GT2 pulley mechanical drawings and belt datasheets for system integration and tolerance guidelines.

Applications:

• 3D Printers: Drive X, Y, or Z axes with precision using stepper motors.
• CNC Machines: Enable accurate motion in lightweight milling and engraving systems.
• Robotics: Provide reliable linear actuation for robotic arms and automation.
• DIY Projects: Integrate into hobby and educational motion control systems.

Equivalent Models:

• 20 Teeth GT2 Pulley: For slower rotation and higher torque transfer.
• 16 Teeth with 8 mm Bore: Fits larger motor shafts.
• GT2 Idler Pulley: Provides belt tensioning in linear motion systems.

Package Includes:

• 1 x 16 Teeth 5mm Bore GT2 Timing Pulley for 6mm Belt
• 2 x Set Screws (pre-installed)
