154J 150nF 100V Correction Capacitor

3.00
You save

In stock

SKU: IFT00172-3 Category: Brand:

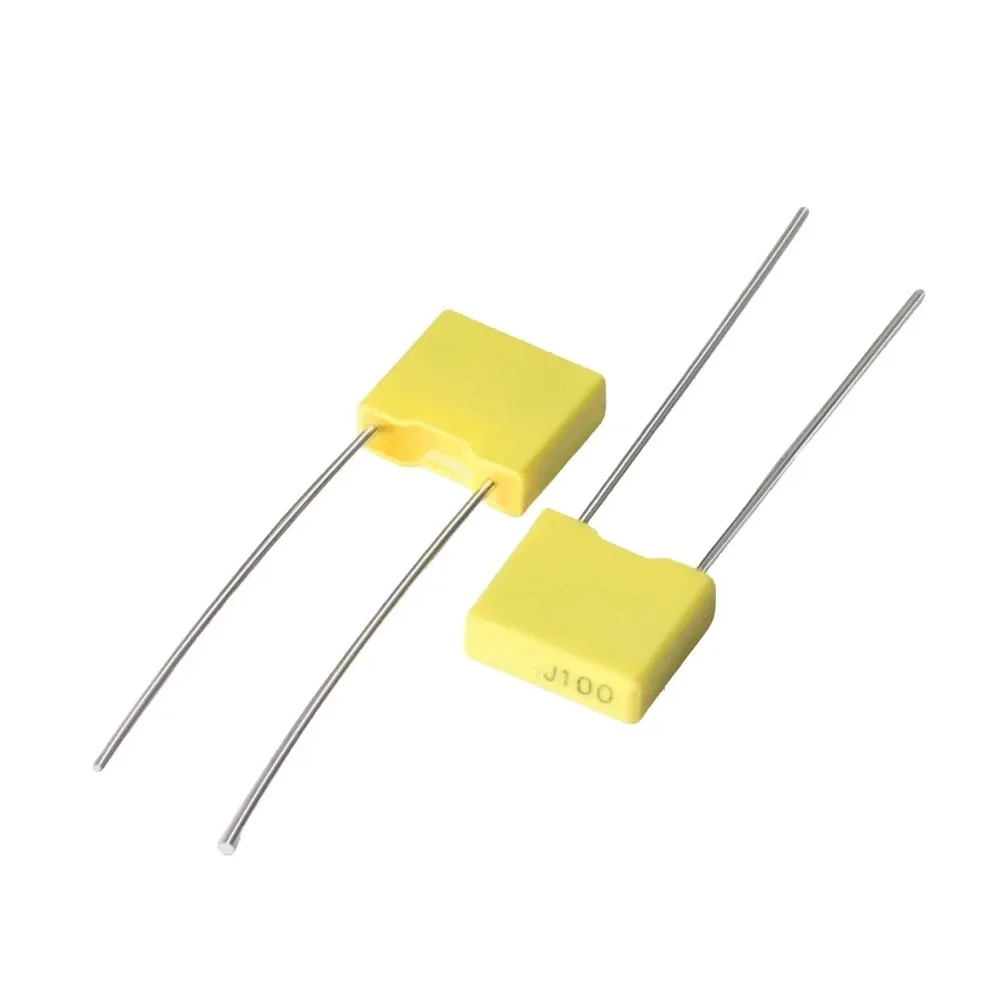

The 154J 150nF 100V Correction Capacitor is a polyester film capacitor designed for general-purpose electronic applications including signal coupling, bypassing, and power supply filtering. With a capacitance of 150nF (0.15µF), it delivers stable electrical performance and is suitable for use in analog and digital circuits where moderate capacitance values are required.

Key Features of 154J 150nF 100V Correction Capacitor:
  • Capacitance Value: 150nF (0.15µF) for general-purpose filtering and timing circuits.
  • Rated Voltage: 100V suitable for low to moderate voltage circuits.
  • Polyester Film Construction: Ensures long-term stability and low loss characteristics.
  • Compact Form Factor: Ideal for dense PCBs and compact modules.
  • Durable Coating: Encapsulated with flame-retardant epoxy resin for moisture and mechanical protection.
Technical Specifications of 154J 150nF 100V Correction Capacitor:
  • Capacitance: 150nF (0.15µF)
  • Rated Voltage: 100V DC
  • Tolerance: ±5% (J Type)
  • Dielectric Material: Polyester Film (PET)
  • Temperature Range: -40°C to +85°C
  • Dissipation Factor: ≤ 1% at 1kHz
Mechanical Specifications of 154J 150nF 100V Correction Capacitor:
  • Lead Spacing (Pitch): 7.5mm (typical)
  • Body Dimensions: Approx. 10mm x 5mm x 10mm
  • Lead Type: Axial or Radial Tin-plated copper leads
  • Encapsulation: Epoxy-coated for environmental protection
Mounting Options:
  • Through-Hole Mount: Suitable for standard hole-mount PCBs.
  • Breadboard Friendly: Can be used in prototyping and lab circuits.
Schematic Diagram, Connection, Wiring and Pinout:
  • Connection: Non-polarized; can be connected in either direction.
  • Wiring: Connect in parallel for filtering or bypass; in series for timing and coupling.
  • Pinout: Two-terminal passive component with identical leads.
Datasheet of 154J 150nF 100V Correction Capacitor:
Applications of 154J 150nF 100V Correction Capacitor:
  • Signal Coupling: Transfers AC signals between amplifier stages.
  • Decoupling/BYPASS: Filters noise from power lines to ICs and circuits.
  • Timing Circuits: Used in conjunction with resistors to form RC timing circuits.
  • Oscillators: Helps define frequency in oscillator and filter circuits.
  • Power Supplies: Filters out voltage spikes and ripples.
Equivalent Models of 154J 150nF 100V Correction Capacitor:
Package Includes:
  • 1 x 154J 150nF 100V Correction Capacitor
