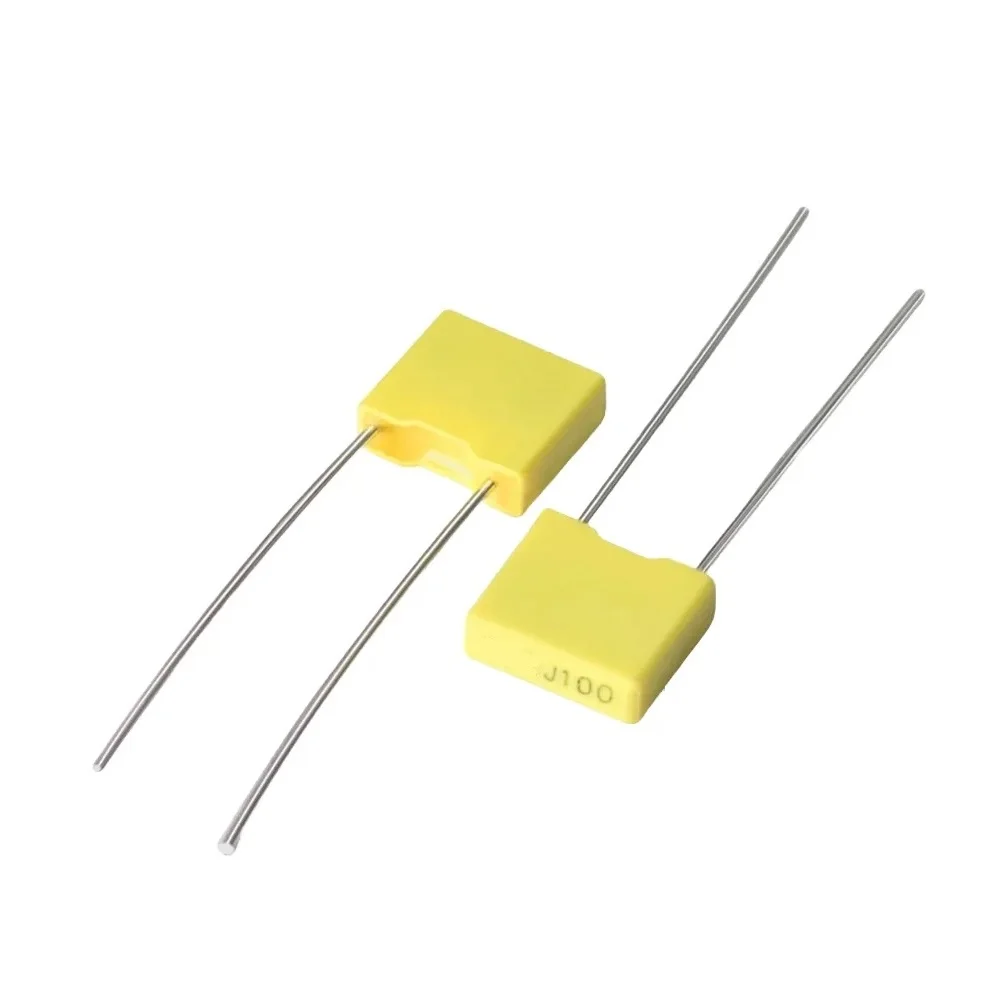

152J 1.5nF 100V Correction Capacitor

3.00
You save

In stock

SKU: IFT00172-4 Category: Brand:

The 152J 1.5nF 100V Correction Capacitor is a film-type capacitor designed for use in signal filtering, coupling, timing, and EMI/RFI suppression circuits. With a capacitance of 1.5 nanofarads and a rated voltage of 100V, this capacitor offers stability, reliability, and low loss characteristics essential for analog and digital electronics.

Key Features of 152J 1.5nF 100V Correction Capacitor:
  • Stable Capacitance: Offers consistent performance across temperature and frequency ranges.
  • High Voltage Rating: Supports up to 100V DC, suitable for signal and power line filtering.
  • Low Loss Factor: Ideal for high-frequency applications with minimal power dissipation.
  • Compact Form: Small leaded package suitable for dense PCB layouts.
  • Durable Material: Constructed using polyester or polypropylene film for long-term reliability.
Technical Specifications of 152J 1.5nF 100V Correction Capacitor:
  • Capacitance: 1.5nF (0.0015µF)
  • Capacitance Code: 152J (1.5nF ±5%)
  • Rated Voltage: 100V DC
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Insulation Resistance: ≥10000MΩ
  • Dissipation Factor: < 0.001 at 1kHz
Mechanical Specifications of 152J 1.5nF 100V Correction Capacitor:
  • Package Type: Radial leaded film capacitor
  • Lead Spacing: 5mm (typical)
  • Lead Type: Tin-plated wire for soldering
  • Encapsulation: Flame-retardant epoxy resin
Dimensions:
  • Length: 7.2mm
  • Width: 2.5mm
  • Height: 6.5mm
  • Lead Diameter: 0.5mm
Mounting Options:
  • Through-Hole Mount: Designed for easy insertion into PCBs with standard lead spacing.
Schematic Diagram, Connection, Wiring and Pinout of 152J Capacitor:
  • Connection: Non-polarized; either lead can be connected to signal or ground.
  • Wiring: Used in parallel with signal or supply lines for filtering applications.
  • Pinout: Two radial leads without polarity marking.
Datasheet of 152J 1.5nF 100V Correction Capacitor:
Applications of 152J 1.5nF 100V Correction Capacitor:
  • EMI/RFI Suppression: Used to reduce high-frequency noise in power lines.
  • Signal Coupling/Decoupling: Common in analog signal circuits.
  • Audio Systems: Filters out unwanted frequencies and noise.
  • Switch Mode Power Supplies: Used as snubber and noise filter capacitor.
  • Oscillators and Timers: Determines timing or frequency in combination with resistors.
Equivalent of 152J 1.5nF 100V Correction Capacitor:
  • Kemet R82EC3150AA50J: Polyester film capacitor with 1.5nF, 100V rating
  • WIMA MKS2: Metallized polyester capacitor with similar characteristics
  • Epcos B32529: Film capacitor for general purpose applications
  • Panasonic ECW-F: High-quality film capacitor suitable for audio and filtering
Package Includes:
  • 1 x 152J 1.5nF 100V Correction Capacitor

Additional information

Weight .5 g
