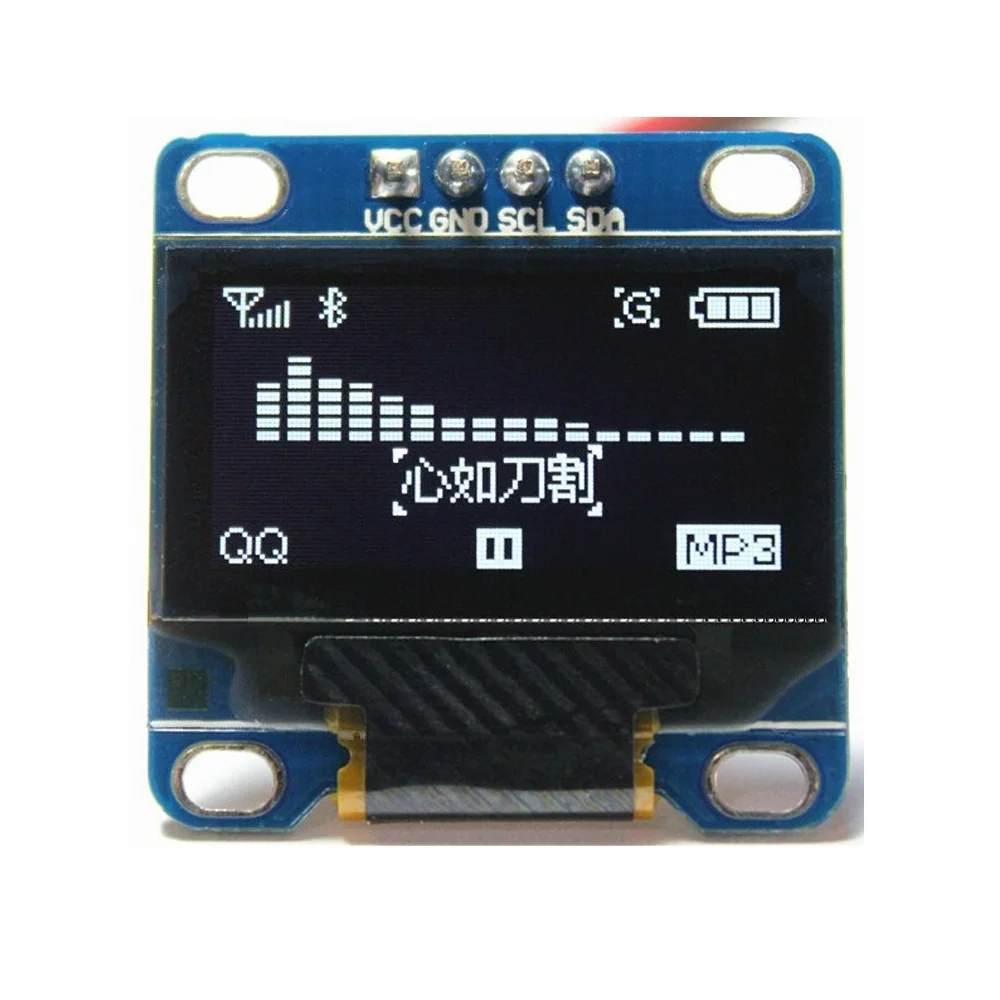

128×64 0.96″ OLED I2C IIC Serial LCD LED Display Module – White

128×64 0.96″ OLED I2C IIC Serial LCD LED Display Module – White is a compact and highly versatile display solution that brings superior visual quality to your embedded projects. This module features Organic Light-Emitting Diode (OLED) technology, which allows it to produce brilliant, high-contrast white pixels without requiring a backlight. Consequently, this results in extremely low power consumption and faster response times compared to traditional LCD screens. Furthermore, the integrated controller (typically an SSD1306) and the simple I2C (or IIC) serial interface enable microcontrollers like Arduino and ESP32 to effortlessly drive the 128×64 resolution, significantly minimizing wiring complexity and code overhead. Therefore, developers choose this 0.96-inch OLED for portable devices and battery-powered applications where both visual clarity and efficiency are critical design factors.

Key Features:

• High Contrast Ratio: OLED technology provides perfect black levels and an extremely high contrast ratio, ensuring excellent readability even in bright ambient light.
• Ultra-Low Power Consumption: Since it generates its own light, the display requires no backlight, drastically reducing the overall current draw, especially when displaying darker content.
• Simple I2C/IIC Interface: This module utilizes the two-wire I2C communication protocol, which requires only four pins (VCC, GND, SCL, SDA) for operation, simplifying integration.
• Wide Viewing Angle: The self-illuminating pixels offer a nearly 180° viewing angle without brightness or color degradation.
• Fast Response Time: OLED pixels turn on and off much quicker than LCDs, providing smooth scrolling and animation capabilities.

Technical Specifications:

• Resolution: 128 x 64 Pixels
• Display Size: 0.96 inches (Diagonal)
• Pixel Color: White
• Driver IC: Typically SSD1306
• Interface: I2C / IIC Serial (Requires 4 wires)
• Operating Voltage (V_CC): 3.3V to 5V DC (Depending on the specific breakout board)
• Operating Temperature Range: −30°C to +70°C

Mechanical Specifications:

• Display Technology: Passive Matrix OLED (PMOLED)
• Module Dimensions (PCB): ≈ 27.8 mm x 27.3 mm
• Module Weight: ≈ 4 g (Extremely lightweight)
• Mounting: Usually mounted via PCB headers or directly soldered into a project.

Dimensions:

• Screen Viewing Area: ≈ 21.7 mm x 10.9 mm
• PCB Board Length: ≈ 27.8 mm
• PCB Board Width: ≈ 27.3 mm
• Module Thickness: ≈ 4.1 mm (Including header pins)
• Pin Header Pitch: 2.54 mm (Standard)

Pinout and Wiring:

• VCC: Supply voltage (Connect to 3.3V or 5V power supply, depending on board regulator).
• GND: Ground connection (Connect to circuit ground).
• SCL (Serial Clock): Connect this pin to the I2C Clock output (SCL) of your microcontroller.
• SDA (Serial Data): Connect this pin to the I2C Data line (SDA) of your microcontroller.
• I2C Address Note: The default I2C address is usually 0x3C or 0x3D; consult your library and board documentation for the correct setting.

Datasheet Reference:

• Download SSD1306 OLED Driver Datasheet

Commonly Used in:

• Wearable Electronics: Its small size and low power consumption make it ideal for smartwatches and fitness trackers.
• Portable Test Equipment: Developers integrate it into handheld meters and diagnostic tools for clear data visualization.
• Miniature Robotics: Provides status and telemetry information on small drones and robotic platforms.

Applications:

• IoT Device Status Display: Clearly shows network connection status, sensor readings, and battery life.
• Menu Navigation Systems: Use the crisp text and graphical capabilities to create simple, effective user interfaces (UIs) for embedded systems.
• Data Logging Visualization: Instantly displays real-time plots or graphs of collected data from sensors.

Equivalent Models:

• SPI 0.96″ OLED Module: A functionally identical display, however, it uses the 4-wire SPI interface instead of I2C.
• 1.3″ 128×64 OLED: Offers the same resolution but on a larger screen size, using the same SSD1306 driver.
• 0.91″ 128×32 OLED: A smaller version with lower vertical resolution, often used in space-constrained applications.

Package Includes:

• 1 x 128×64 0.96″ I2C OLED Display Module – White
