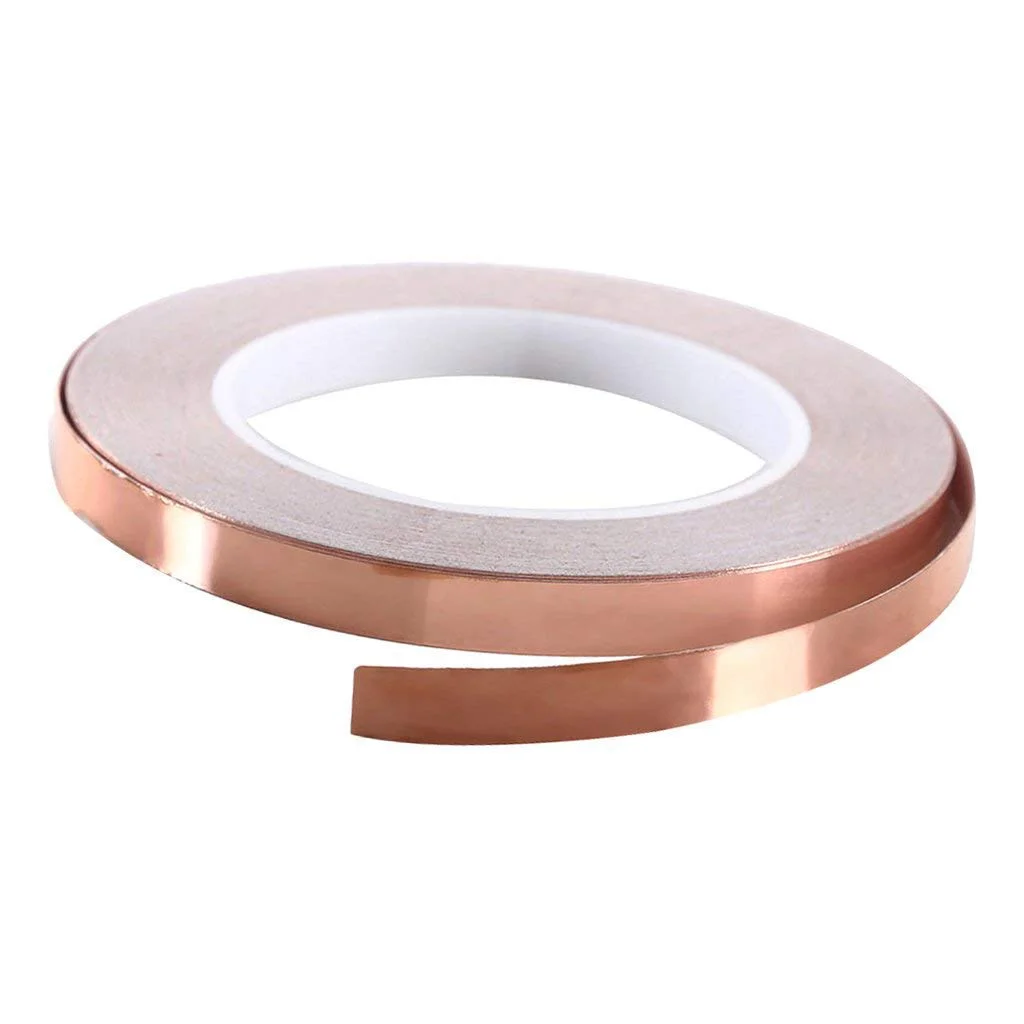

10mm Double E-conducting Copper Foil Tape

The 10mm Double E-Conducting Copper Foil Tape is a versatile EMI shielding and grounding solution ideal for electronics, DIY, and repair applications. With its conductive adhesive and high-purity copper foil, it ensures excellent electrical conductivity across both surfaces and adhesive side, making it perfect for circuit repairs, static discharge, and RF shielding.

Key Features of 10mm Double E-Conducting Copper Foil Tape:

• Double-Sided Conductivity: Both copper surface and adhesive side conduct electricity for seamless grounding.
• High-Purity Copper: Made from pure copper for low resistance and high durability.
• EMI/RFI Shielding: Effectively blocks electromagnetic and radio frequency interference.
• Strong Adhesion: Conductive adhesive ensures secure bonding to metal, plastic, glass, or PCB surfaces.
• Flexible and Easy to Use: Can be cut, bent, or shaped without breaking for versatile applications.

Technical Specifications of 10mm Double E-Conducting Copper Foil Tape:

• Tape Width: 10mm
• Tape Length: As per selection
• Thickness: Approximately 0.06mm (foil + adhesive)
• Material: Pure copper foil
• Adhesive Type: Conductive acrylic adhesive
• Conductivity: Double-sided (adhesive and copper surface)
• Resistance: ≤ 0.05 ohm/inch

Mechanical Specifications of 10mm Double E-Conducting Copper Foil Tape:

• Backing: Soft copper foil for flexibility
• Adhesion Strength: High tack for firm grip
• Operating Temperature: -10°C to +120°C
• Flame Retardant: No

Dimensions:

• Tape Width: 10mm
• Tape Thickness: 0.06mm
• Tape Length: As pe selection

Mounting Options:

• Peel-and-Stick: Self-adhesive backing for quick installation on flat or contoured surfaces.
• Solderable Surface: Can be soldered directly for circuit repairs and grounding applications.

Schematic Diagram, Connection, Wiring and Pinout:

• Connection: Conductive surface ensures continuity when used between circuits or components.
• Wiring: Can bridge gaps in PCB traces or shield wiring harnesses from interference.
• Pinout: Not applicable (tape-based component)

Datasheet of 10mm Double E-Conducting Copper Foil Tape:

• Download Sample Datasheet (3M 1181 Equivalent)

Applications of 10mm Double E-Conducting Copper Foil Tape:

• EMI Shielding: Prevents interference in sensitive audio, video, and RF circuits.
• Circuit Repair: Restores broken PCB traces or establishes connections between components.
• Static Discharge: Provides a grounding path to dissipate ESD safely.
• Guitar Shielding: Reduces hum and noise in electric guitars and instruments.
• DIY Projects: Useful in wearables, crafts, Arduino, and Raspberry Pi builds.

Equivalent Models of 10mm Double E-Conducting Copper Foil Tape:

• 3M 1181: High-performance EMI shielding copper tape
• Tesa 60254: Conductive adhesive copper foil tape for industrial use
• AdhesiveFilm CF100 Series: Precision copper foil tape with conductive acrylic adhesive

Package Includes:

• 1 x 10mm Double E-Conducting Copper Foil Tape Roll
