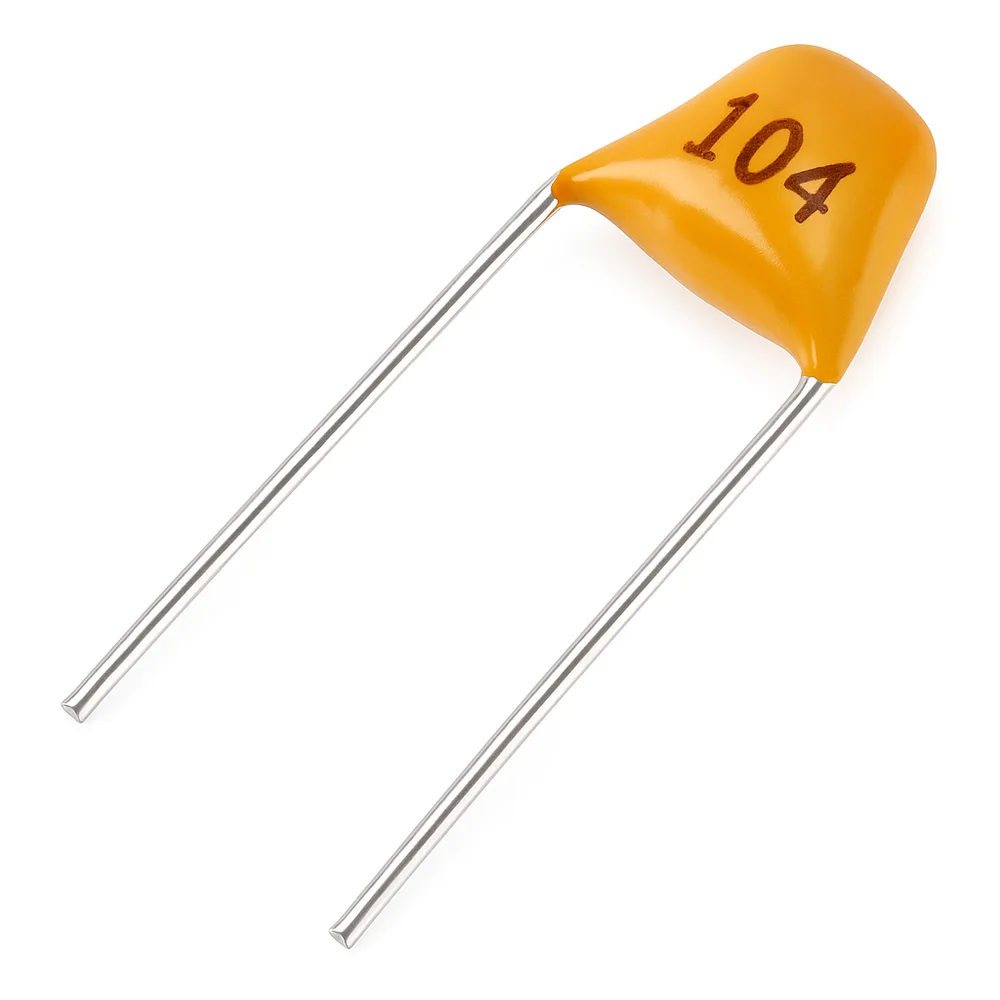

0.1UF 104 50V Monolithic Multilayer Ceramic Capacitor (MLCC)

0.1µF 104 50V Monolithic Multilayer Ceramic Capacitor is a general-purpose passive electronic component ideal for decoupling, filtering, and signal coupling in circuits. With a capacitance of 0.1µF and rated for up to 50 volts, it offers stable performance across a wide temperature and frequency range. The compact monolithic design and high reliability make it suitable for both consumer and industrial-grade applications.

Key Features:

• Stable Capacitance: Maintains consistent performance over temperature and voltage variations.
• Multilayer Ceramic Structure: Ensures high reliability and low ESR (Equivalent Series Resistance).
• Non-Polarized: Can be installed in either direction in the circuit.
• Low Leakage Current: Suitable for signal integrity and analog applications.
• Compact Size: Ideal for space-constrained PCBs and dense layouts.

Technical Specifications:

• Capacitance: 0.1µF (104 code)
• Rated Voltage: 50V DC
• Tolerance: ±10%
• Dielectric Type: Class II (X7R or Y5V based on manufacturer)
• Insulation Resistance: ≥100 MΩ
• Dissipation Factor: ≤2.5%

Mechanical Specifications:

• Body Type: Monolithic rectangular block
• Material: Ceramic dielectric with tinned terminations
• Lead Type: Radial leads (tinned copper)
• Mounting: Through-hole

Dimensions:

• Body Width: ~4.0 mm
• Body Height: ~3.5 mm
• Body Thickness: ~2.0 mm
• Lead Spacing: 2.5 mm to 5.0 mm (approx.)

Mounting Options:

• Through-Hole: Ideal for manual soldering or wave soldering in PCBs
• Compatible with Breadboards: Easy prototyping using standard headers

Schematic Diagram, Connection, Wiring and Pinout:

• Connection: Non-polarized — either lead can go to positive or ground
• Placement: Typically placed between power (Vcc) and ground (GND) to suppress noise
• Wiring: Use short leads for best performance in high-frequency circuits

Datasheet/User Manual:

• Datasheet available based on manufacturer (Murata, Kemet, TDK, Yageo, etc.)

Applications:

• Decoupling Capacitor: Placed near ICs to filter power supply noise
• Signal Coupling: Used in analog circuits to pass AC and block DC
• Filter Networks: Low-pass or high-pass filters in audio/RF designs
• Oscillators: Stabilizes frequency in crystal circuits
• General Purpose: Used in timers, sensors, and switching power supplies

Equivalent:

• Murata GRM series (e.g., GRM155R71H104)
• TDK C series
• Kemet C315C104M5U5TA
• Yageo CC series MLCC
