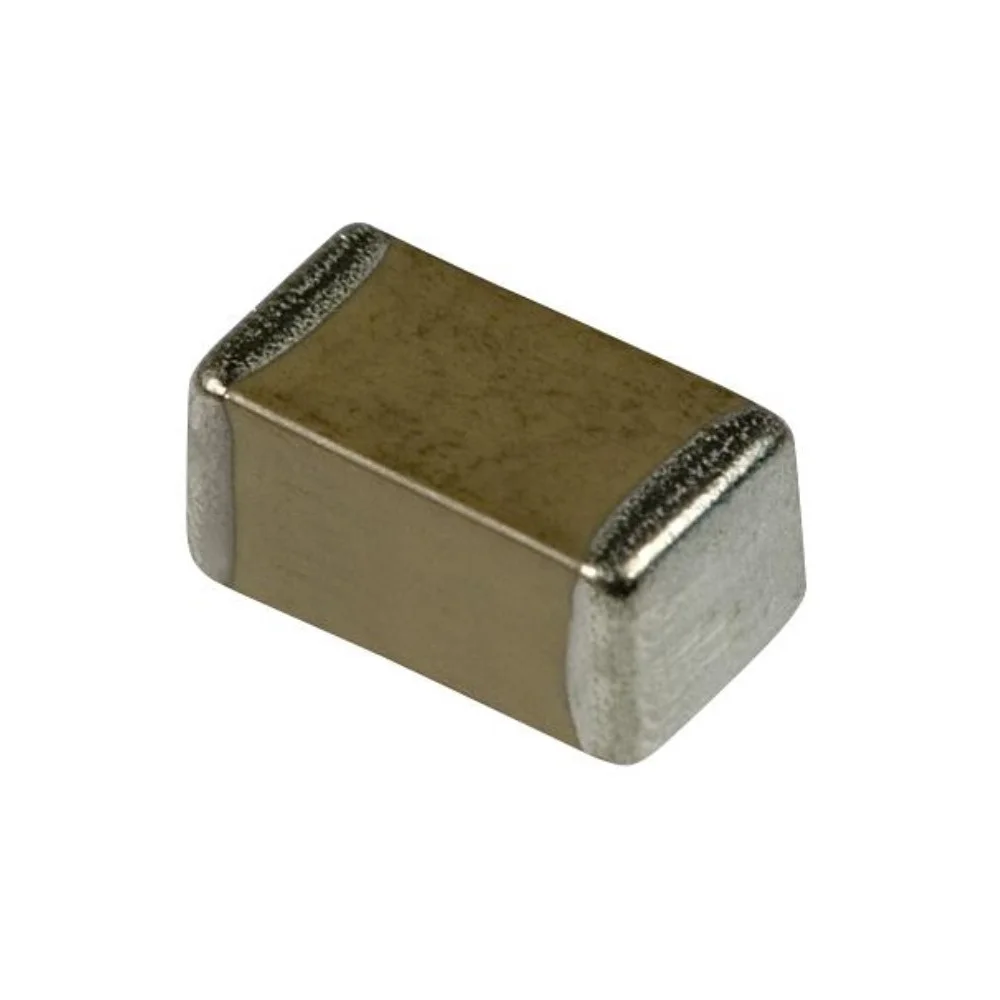

100nF / 0.1uF 50V (104) Ceramic Capacitor (0805 PACKAGE)

100nF / 0.1μF 50V (104) Ceramic Capacitor (0805 Package) is a surface-mount multilayer ceramic capacitor (MLCC) designed for high-frequency filtering, decoupling, and bypass applications in modern electronic circuits. With its compact 0805 footprint and reliable performance, this capacitor is widely used in consumer electronics, telecommunications equipment, and embedded systems.

Key Features:

• • Compact Size: 0805 package (2.0mm × 1.25mm)
  • High Reliability: Ceramic dielectric ensures stable performance
  • Low ESR: Excellent high-frequency characteristics
  • Wide Applications: Suitable for decoupling and filtering circuits
  • RoHS Compliant: Environmentally friendly construction

Technical Specifications:

• • Capacitance: 100nF (0.1μF) ±10% tolerance
  • Voltage Rating: 50V DC
  • Package Size: 0805 (2.0mm × 1.25mm)
  • Dielectric Type: X7R (Temperature stable)
  • Temperature Range: -55°C to +125°C
  • ESR: Typically 5-10mΩ at 100kHz
  • Termination: Nickel barrier with tin plating

Mechanical Characteristics:

• • Dimensions: 2.0mm (L) × 1.25mm (W) × 0.85mm (H)
  • Termination Size: 0.3mm per side
  • Weight: Approximately 0.008 grams
  • Material: Ceramic dielectric with metal electrodes
  • Color: Light brown ceramic with metallic ends

Marking Information:

• • Top Marking: “104” (indicating 10 × 10⁴ pF = 100nF)
  • Additional Codes: Manufacturer-specific markings may be present

Recommended Soldering Profile:

• • Peak Temperature: 260°C maximum
  • Duration: 10 seconds maximum at peak temperature
  • Preheat: 150-200°C for 60-120 seconds

Typical Applications:

• • Power Supply Decoupling: Placed near IC power pins
  • Signal Filtering: High-frequency noise suppression
  • Coupling Circuits: AC signal transmission between stages
  • Timing Circuits: RC timing components
  • Consumer Electronics: Used in smartphones, tablets, and laptops

Equivalent Models:

• • 100nF 0603 Capacitor: Smaller footprint version
  • 0.1μF 1206 Capacitor: Larger package alternative

Datasheet:

• • Download X7R Ceramic Capacitor Datasheet

Keywords:

• • 100nF Ceramic Capacitor
  • 0.1μF 0805 Capacitor
  • 104 SMD Capacitor
  • 50V MLCC Capacitor
  • Surface Mount Capacitor

Package Options:

• • 1 x 100nF / 0.1uF 50V (104) Ceramic Capacitor (0805 PACKAGE)
